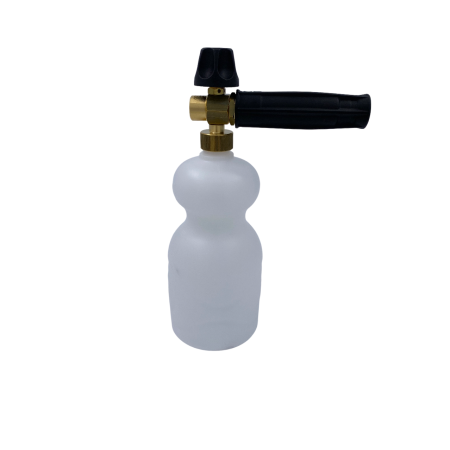

Foam injector lance with regulator and bottle. The new LS3, now with vertical nozzle. Nozzle size 1.25.
Inlet 1/4 Bsp F
Pressure 160 bar - 16 MPa - 2300 psi
Permissible Pressure 180 bar - 18 MPa - 2600 psi
Rated Flow Rate 12 l/min - 3.2 USGpm
Rated Temperature 60 °C - 140 °F
Tank 1 L - 0.264 USg
Data sheet
Our easyfoamer ST-73.1 realizes an ideal mixing of air and cleaning agent, thus succeeding an ideal foam result. Nozzle size 1.25.
completely stainless steel and
non-corrosive injector unit
the highest grade of chemical resistance
5 defined dosing positions
0.265 gal bottle
vertical or horizontal spray pattern
patent pending
Pressure max. 4350 psi
Temperature 176 F
Suttner ST 73.1 High flow foam injector lance with large 64 oz. Bottle, Stainless steel Integrated Chemical Injector size 1.8, 1/4" F Inlet. Convenient and portable for more effective foam cleaning for Industry, Agriculture, Atuomotive/Fleet and institutional applications!
The ST-73 foam lance is fitted with an interchangeable injector nozzle and a foaming pad. By turning an adjustable grip handle the concentration of foaming agent in the water can be adjusted.
Pressure 1000 - 3625 PSI
Flow Rate 3.4 - up to 8 GPM
Max Temp 175° F
Inlet 1/4" Female
Bottle 64 oz.
Weight 1.20 lb
