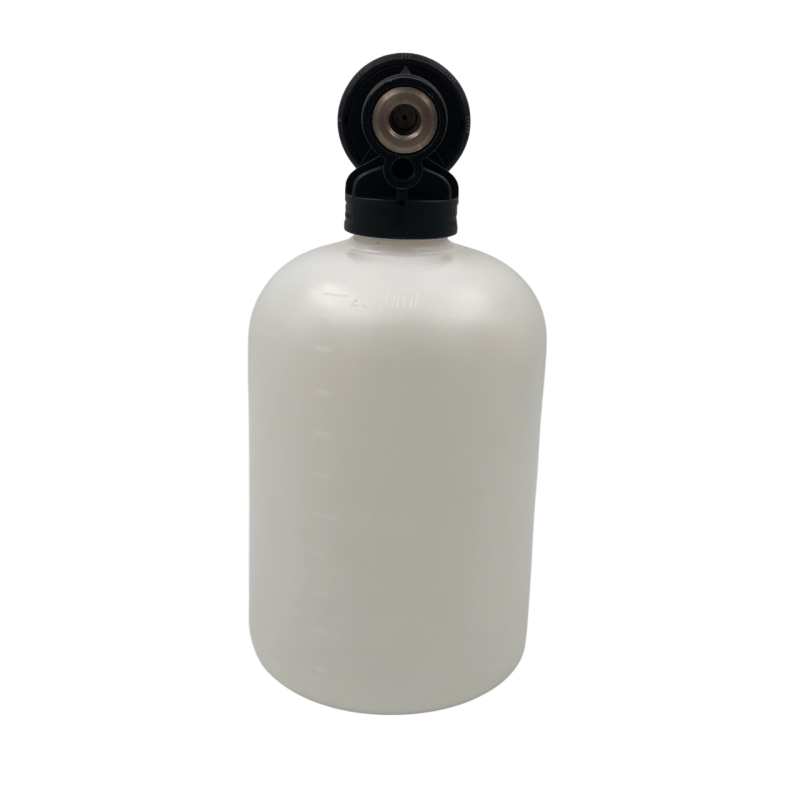

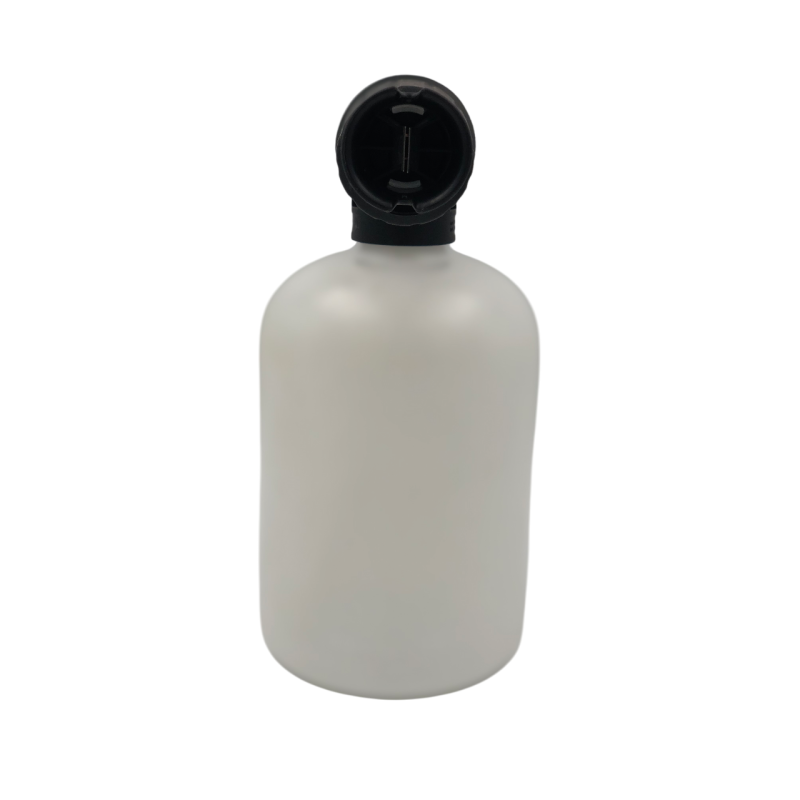

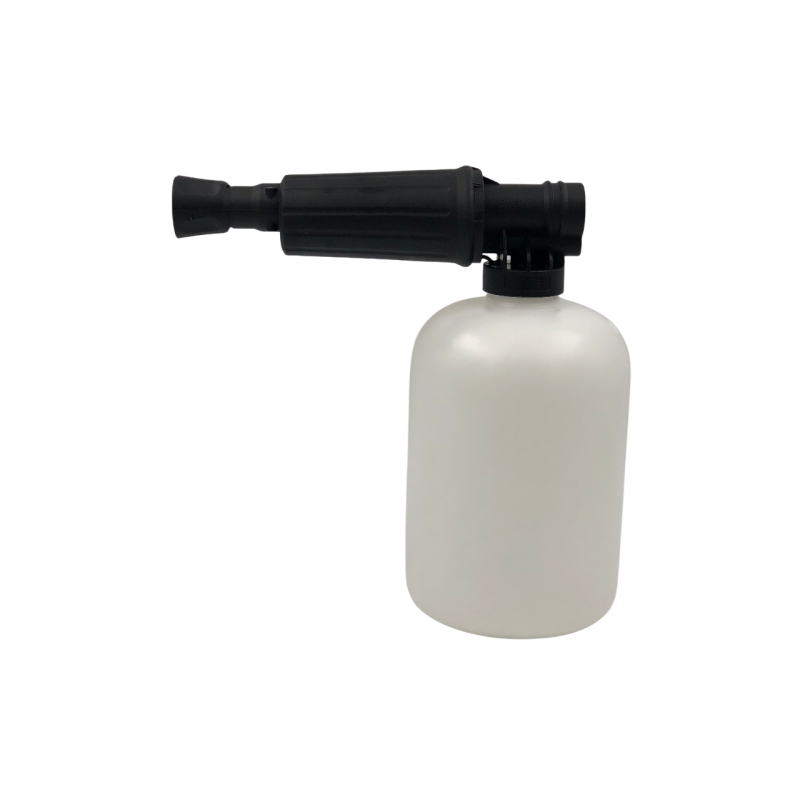

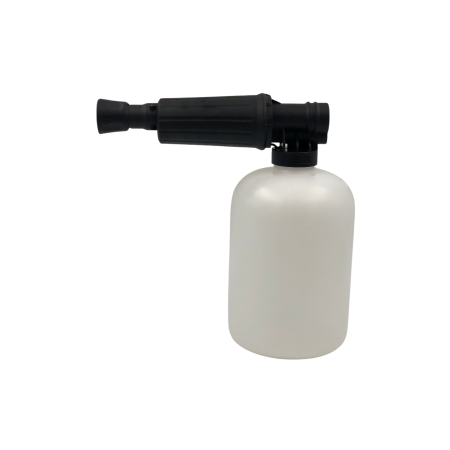

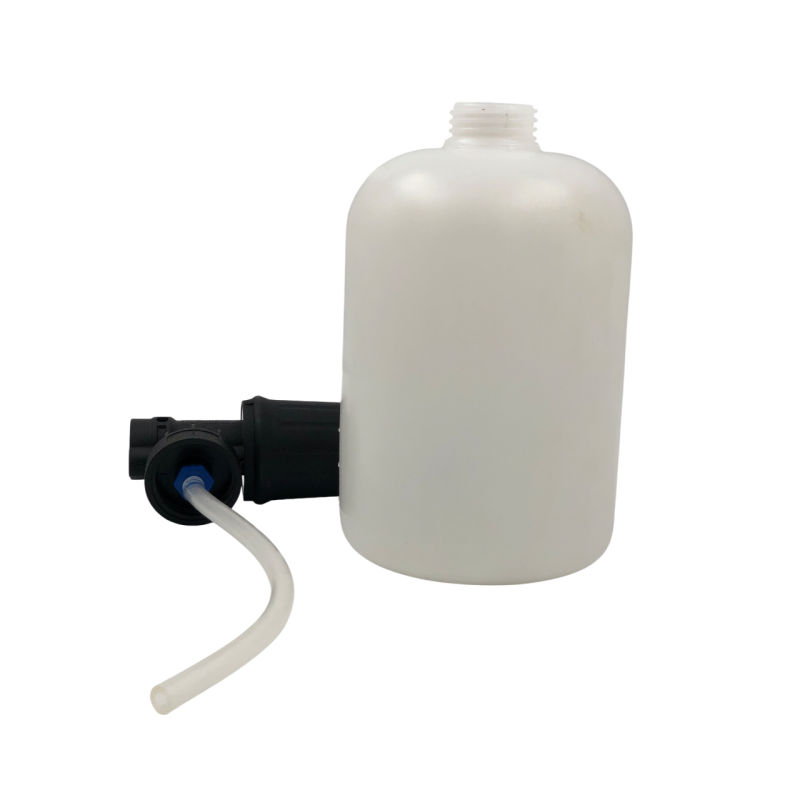

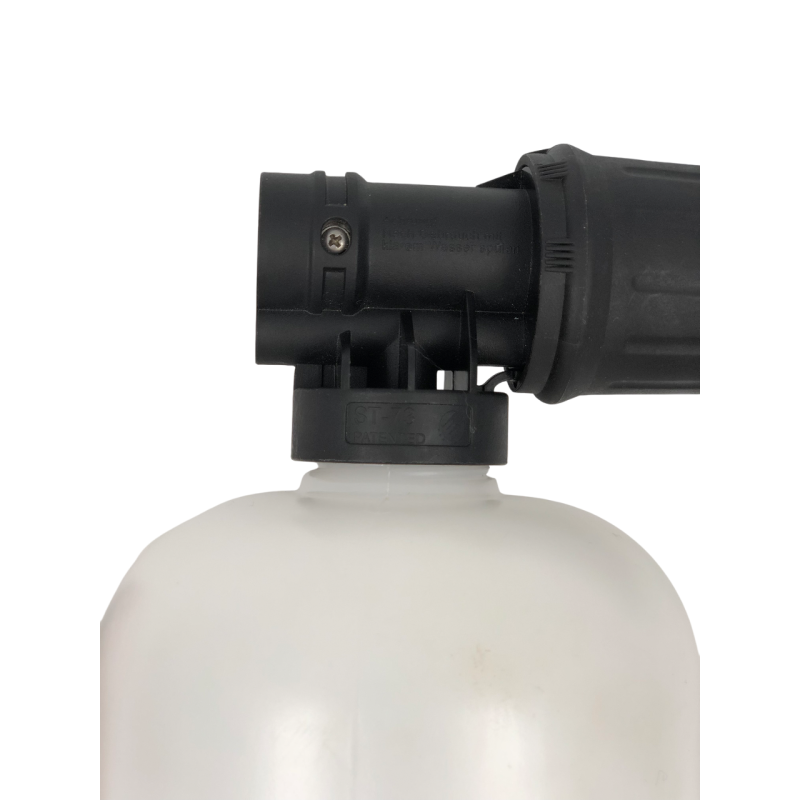

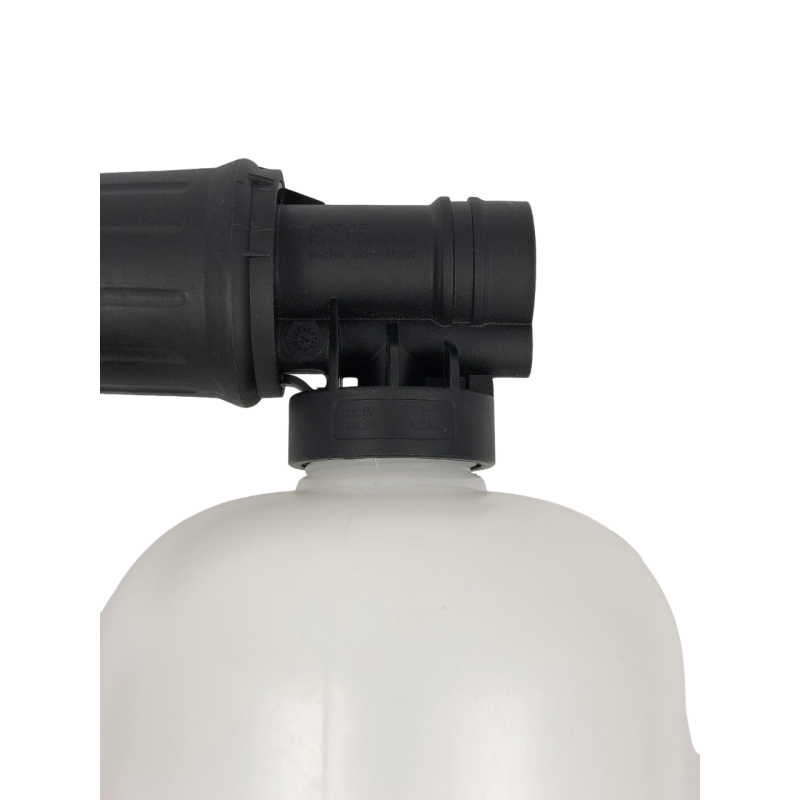

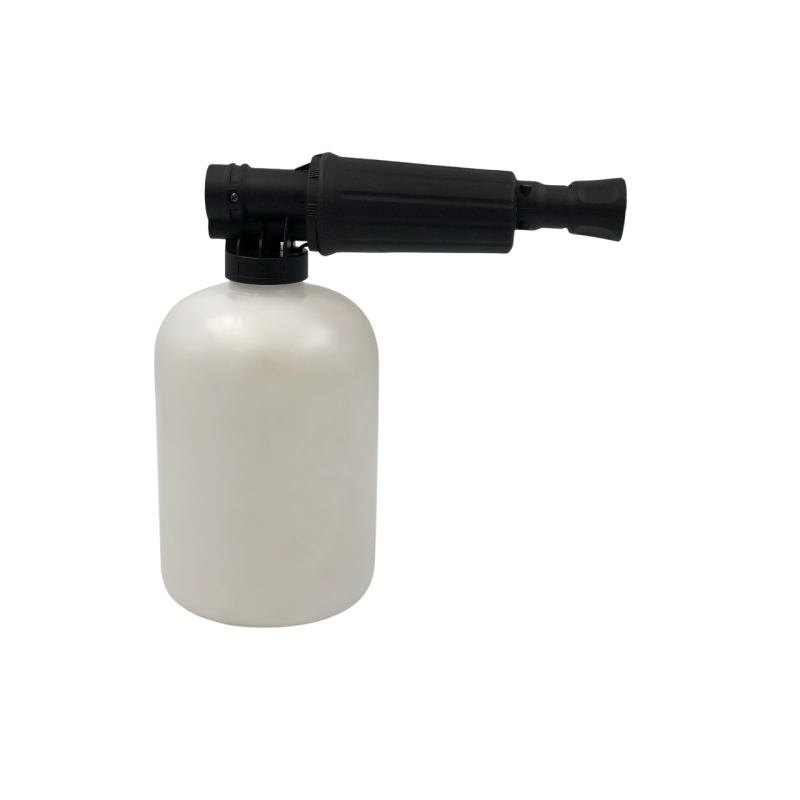

Suttner ST 73.1 High flow foam injector lance with large 64 oz. Bottle, Stainless steel Integrated Chemical Injector size 1.8, 1/4" F Inlet. Convenient and portable for more effective foam cleaning for Industry, Agriculture, Atuomotive/Fleet and institutional applications!
The ST-73 foam lance is fitted with an interchangeable injector nozzle and a foaming pad. By turning an adjustable grip handle the concentration of foaming agent in the water can be adjusted.
Pressure 1000 - 3625 PSI
Flow Rate 3.4 - up to 8 GPM
Max Temp 175° F
Inlet 1/4" Female
Bottle 64 oz.
Weight 1.20 lb
Features:
5 position metering valve for chemical draw
Adjustable nozzle - with a simple twist you can change from a horizontal spray to a vertical spray
Stainless steel non-corrosive injector
Easy to fill wide mouth bottle with fill markings
Integrated injector (no additional injector required)
Food Grade
Data sheet
Our easyfoamer ST-73.1 realizes an ideal mixing of air and cleaning agent, thus succeeding an ideal foam result. Nozzle size 1.25.
completely stainless steel and
non-corrosive injector unit
the highest grade of chemical resistance
5 defined dosing positions
0.265 gal bottle
vertical or horizontal spray pattern
patent pending
Pressure max. 4350 psi
Temperature 176 F
Foam injector lance with regulator and bottle. The new LS3, now with vertical nozzle. Nozzle size 1.25.
Inlet 1/4 Bsp F
Pressure 160 bar - 16 MPa - 2300 psi
Permissible Pressure 180 bar - 18 MPa - 2600 psi
Rated Flow Rate 12 l/min - 3.2 USGpm
Rated Temperature 60 °C - 140 °F
Tank 1 L - 0.264 USg
ST-357.1 Orifice size 05 Black. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.
Type: ST-357
Nozzle orifice: 05 Black
Spray angle 20°
Pressure range: 1450 - 3625 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
ST-49.1 rotating sewer cleaning nozzle. Nozzle size 045. Female 1/8. Material Ss and brass . Made in Germany
Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 1”-3” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.
PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 06
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel
Quick Screw Coupling (nipple) M22X1,5:1/4"M
Maximum pressure: 5800 psi
Temperature: 300°F
Input: M22 M
Outlet: 1/4 M
Housing: brass
Height 29 mm
ST-31 Intake chemical strainer without check valve. Strainer prevents debris from entering and destroying the components. Hose barb 1/4 -1/8. Internal stainless steel weight keep chemical strainer in the bottom of the container.
Housing: plastic
Weight: stainless steel
Diameter: 20 mm / 0.8"
Length: 75 mm / 3"
Suttner ST-2600 Pressure Washer Trigger Gun. Patented LTF technology. Inlet 3/8 F, Outlet 1/4 F
Professional, heavy duty, German made, Suttner ST-2600 with patented LTF technology (Low trigger force) pressure washer trigger gun. It comes with a 1/4” female outlet and 3/8 F inlet. Made in Germany.
PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 045
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel
ST-357.1 Orifice size 055 light blue . Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.
Type: ST-357
Nozzle orifice: 055 Light blue
Spray angle 20°
Pressure range: 1450 - 3625 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Interpump/General pump Valve Kit 123 for pumps EZ, PP, TC, TP, TX.
Consists of:
Lance Nozzle protector for Nilfisk WAP. Made out of soft plastic which protects sensitive surface against damage. The nozzle protector is suitable for cold and hot water applications in the car wash and agriculture. Suitable for Nilfisk WAP nozzle with hexagon 13+14, 1/8" M NPT.
Maximum Pressure 5800 PSI
Rated Temperature 300° F
Protection Material Plastic
Suttner ST-6 Flow Switch, All position (Horizontal or Vertical) Spring assisted brass magnet. Made in Germany
FEATURES:
-Horizontal or vertical mount
-Easy brass reed switch replacement.
SPECIFICATION:
-Max. Pressure: 5,070 PSI/350 bar.
-Min. Pressure: 75 PSI
-Max. Flow Rate: 8 GPM/ 30 ltr.
-Min. Flow Rate: 1 GPM
-Max Voltage: 250 V
-Max Current: 1 Amps
-Max: Fluid Temperature: 180° F/ 80 ° C
-Cable Length: 47.0 in/ 1200 mm.
-Inlet & Outlet: 3/8 MNPT
-Housing: Forged Brass
Suttner ST-54 Stainless Steel 38" Molded Handle,Twin lance. 15 degrees bended input 1/4"MPT, 2 outlets 1/4"F with nozzle ST-10 protector and low pressure nozzle. High pressure nozzle is NOT included. Made in Germany. For use when high and low pressures are needed.
For example, spraying cleaning agents with low pressure through an injector valve and then cleaning with high pressure. Lance 15° bended with molded handle, valve ST-54 aside, nozzle protector ST-10 with low pressure nozzle & 1/4" F thread
ST-40 Quick Screw Coupling M22X1,5F:1/4 F. Suitable for Karcher and more.
Maximum pressure: 5800 psi
Temperature: 300°F
Input: M22 F
Outlet: 1/4" F
Housing: brass/plastic
Height 45 mm
ST-456 Orifice size 04 Brown. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.
Type: ST-456
Nozzle orifice: 04 brown
Spray angle 20°
Pressure range: 2900 - 5076 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Spray angle: 20°
PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 05
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel
The ST-2300 is a professional high pressure cleaning gun (hot/cold water). The grip housing is from an impact-resistant plastic. The valve body and connectors are both corrosion-resistant. The trigger is equipped with a safety lock and rotating swivel joint that the high pressure hose cannot be turned so as to unscrew the connection between high pressure hose and spray gun a swivel joint may be used. By means of this swivel joint the gun may be turned slightly when in an unpressured state in relation to the hose. With increasing pressure the swivel joint becomes increasingly difficult to turn.
Maximum pressure: 4500 psi
Recommended pressure: 4000 psi
Maximum flow rate: 12 GPM
Temperature: 300°F
Input connector: swivel 3/8 F
Outlet: connector 1/4 F
Housing: forged brass
