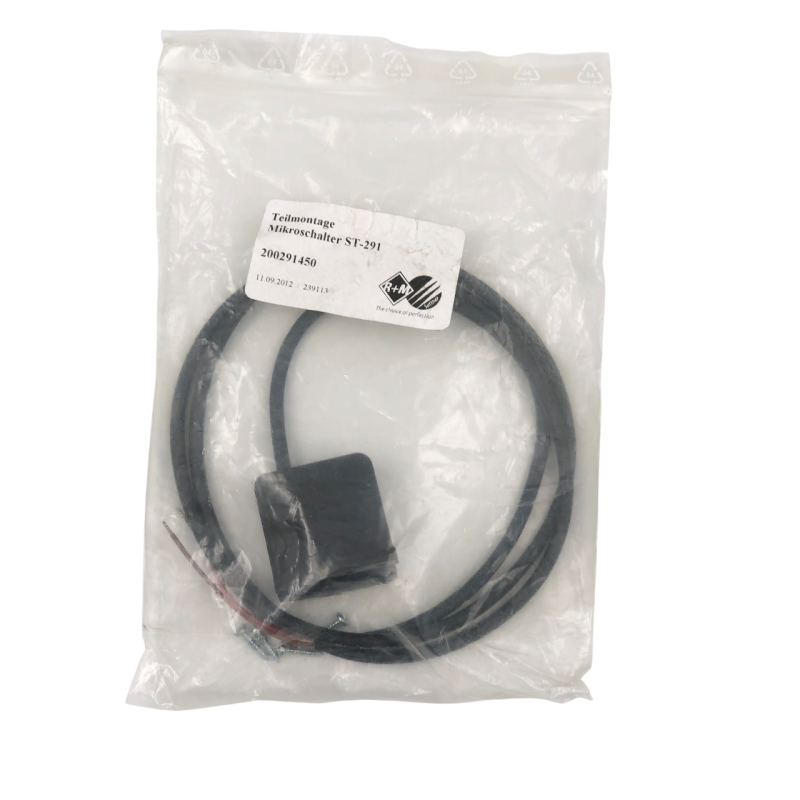

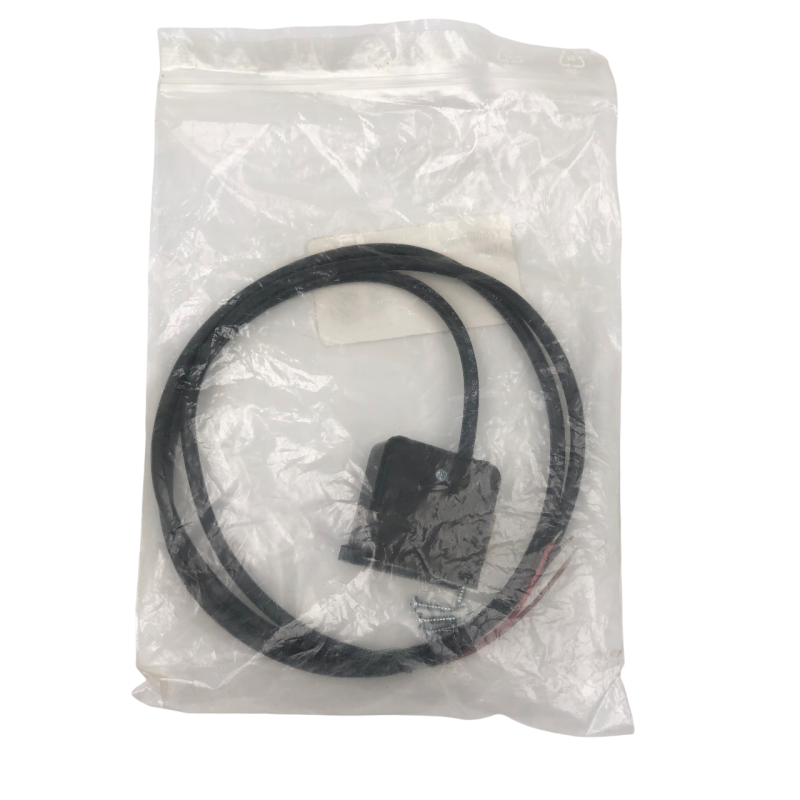

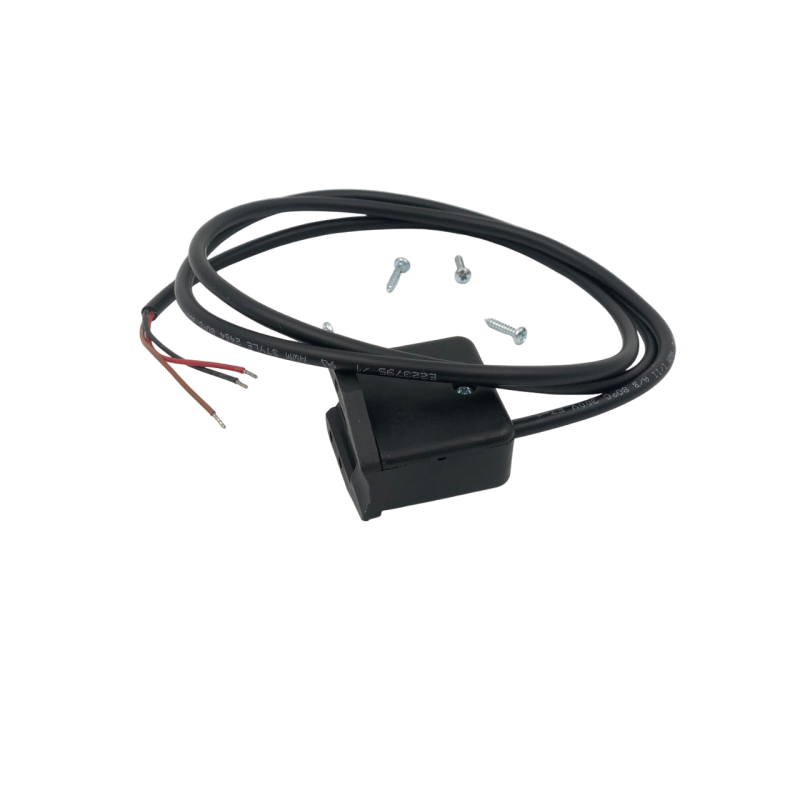

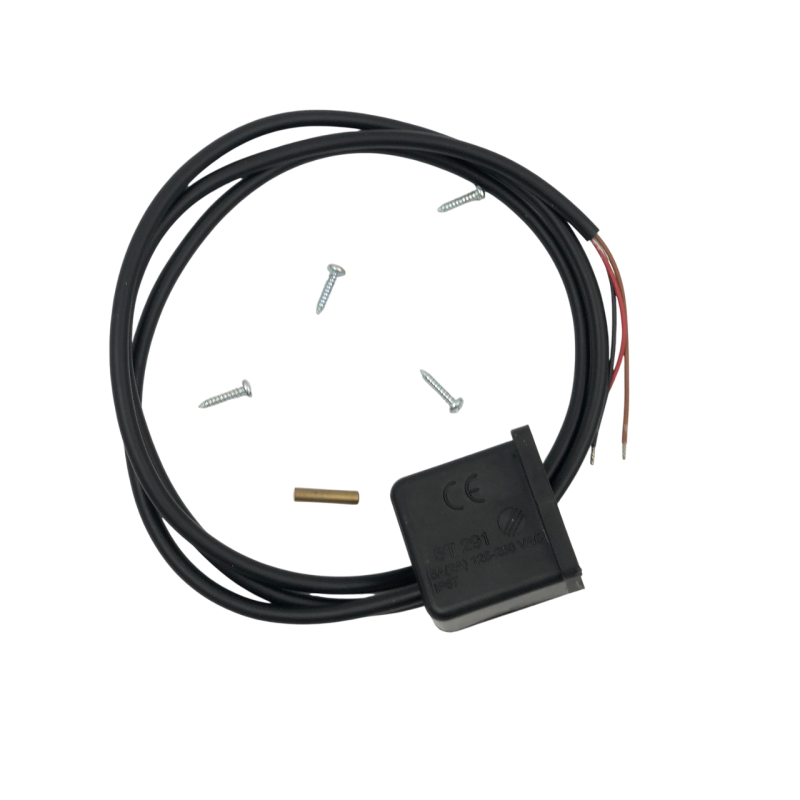

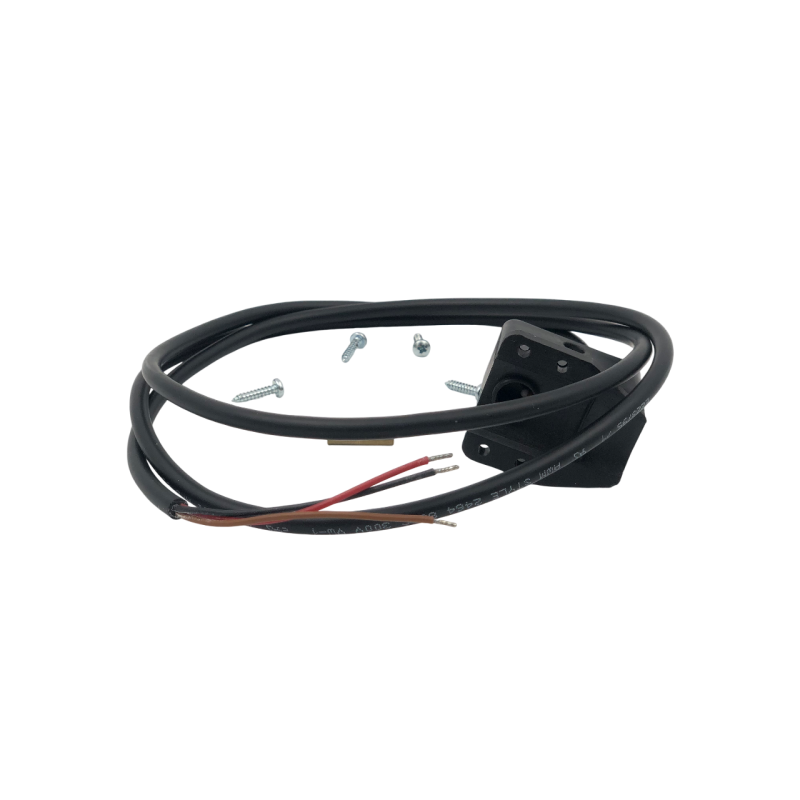

+1 747 767 2162Repair kit Unloader valve ST-291 Micro-switch kit with cable.
Temperature 176° F
Housing Plastic
Reed switch cord length 47"
Contact 5A - 125/250V
International protection rating IP 67
Data sheet

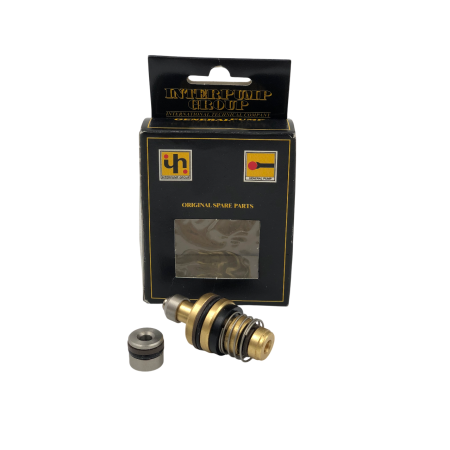

General Pump Repair Kit 137 - Unloader Repair Kit, For Triplex pumps TX, EZ Series 44, U, UI.
Consists of:
Anti-ext ring 90505200
O-ring 90382000
Sleeve 36323470
O-ring(2) 90357500
Anti-ext ring 90502500
Spacer 36323070
Spring 94748500
Valve 36323151
Valve guide 36322970
O-ring 90360000
Anti-ext ring 90514400
Spherical valve 36319066
Screw 99150900
Seat 36316466
O-ring 701614
Anti-ext ring 90506500
Repair kit nozzle head for Suttner ST-72 Stainless Steel Foam Lance. Stainless steel construction ideal for food grade applications.
Specifications
Nozzle head without orifice
Input 1/4" FPT
Output 3/8" FPT
Maximum Temperature 300° F
Minimum Temperature 41° F
Professional gun with patented LTF technology. (LTF - Low Trigger Force 90% reduced holding force and 40% reduced trigger force agains usual market guns).Gun with coupling ST-3100 (lance not including). Stainless steel. Suitable for e.g. huge water amounts in the food industry. PEEK valve cone enables use in low pressure.Made out of plastics to come into contact with foodstuffs.Especially disigned for applicationsin the food industry.
Maximum pressure: 1800 psi
Maximum flow rate: 21 GPM
Temperature: 300°F
Input connector: 1/2 "F swivel
Outlet: ST-3100 coupling
Housing: Stainless steel
PR-5 Blue pressure switch is a fluid operating electro-mechanical device, which, upon reaching a pre-set (start-up)pressure 15 bar/218 PSI, opens or closes an electrical control contact . Microswitch with very high resistance openings. Considerable resistance to high current values. Compact overall dimension. Three core cable.
Maximum pressure: 5076 psi
Rated working pressure: 3650 psi
Minimum pressure: 218 psi
Temperature: 167°F
Input : 1/4 F
Housing material: brass
Cord length: 37"
Max Curr./V. strength Contact: 5A-250 V
International protection rating: IP 65
Suitable for all Suttner injectors ST-60, ST-60.1, ST-62. Hose tail 6mm chemical check valve.
Maximum Pressure 3625 PSI / 250 Bar
Maximum Temperature 140° F / 60° C
Material Brass
Hose Tail 6mm/0.24 in
Flow Switch ST-7 1.5L/Min open 0.4 GPM
ST-7 Flow switch with micro-switch. Switch-on point 0.4 GPM. Mounts in any position horizontal or vertical.
SPECIFICATION:
-Maximum pressure: 5000 psi
-Minimum flow rate: 0.4 GPM
-Maximum flow rate: 12 GPM
-Temperature: 176°F
-Input : 3/8 F
-Outlet: 3/8 F
-Housing: Brass
-Brass reed switch cord length: 47"
-Contact: 10A-250 V
-International protection rating: IP 65
ST-1500 is a most popular professional spray gun in the market.The grip housing is from impact-resistant plastic. The valve body and connectors are corrosion-resistant. The trigger is equipped with a safety lock.
Maximum pressure: 4000 psi
Maximum flow rate: 12 GPM
Temperature: 300°F
Input connector: 3/8 F
Outlet: 1/4 F
Housing: forged brass
The ST-2300 is a professional high pressure cleaning gun with coupling KW. Famous quick coupling system for accessories, quicker to connect and disconnect lance, reducing downtime.(KEW, Nilfisk- Alto) The grip housing is from impact-resistant plastic. The valve body and connectors are corrosion-resistant. The trigger is equipped with a safety lock.
Maximum pressure: 4500 psi
Minimum pressure: 145 psi
Recommended pressure: 4000 psi
Maximum flow rate: 12 GPM
Temperature: 300°F
Input connector: 3/8 F
Outlet: Coupling KW
Housing: forged brass

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 05
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel
Unloader valve/Pressure regulation valve VB-7/3. Brass valve body. Fits CAT 4SF pumps and other pumps.
Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 M
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass
Suttner ST-2600 Pressure Washer Trigger Gun. Patented LTF technology. Inlet 3/8 F, Outlet 1/4 F
Professional, heavy duty, German made, Suttner ST-2600 with patented LTF technology (Low trigger force) pressure washer trigger gun. It comes with a 1/4” female outlet and 3/8 F inlet. Made in Germany.
Suttner ST-007 Stainless Steel 47" molded handle lance. Input/output 1/4" Made in Germany.
Most popular lance for cold or hot water applications. Suitable when using corrosive chemicals

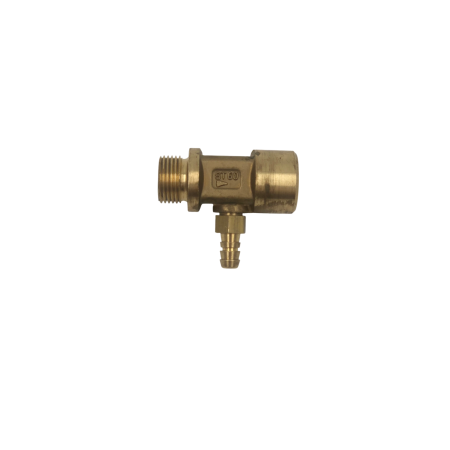

ST-60.1 Downstream Suttner foam injector with chemical metering valve, suction hose and ST-31 chemical strainer, quick couplings nickel/zinc plated brass ST-45-250 KEW, Nilfisk-Alto. Mixing of chemicals approx. 0-11.5%.Metering valve hose tail 1/4. Suction hose 39" long.Injector with dosage ST-61. Orifice size 1.6 mm.
Maximum pressure: 3625 psi
Minimum flow rate: 1.6 GPM
Maximum flow rate: 15.2 GPM
Temperature: 140°F
Housing: forged brass
Nozzle: Stainless steel
Input coupling: ST-45-250 KW
Output connector: ST-45-250 KW
Suction hose lenght: 39"
ST-49.1 rotating sewer cleaning nozzle. Nozzle size 08. Female 3/8. Material Ss and brass . Made in Germany
Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 4”-8” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.
ST-49.1 rotating sewer cleaning nozzle. Nozzle size 05. Female 1/4. 3x0.8 Material Ss and brass . Made in Germany
Suttner rotating nozzle for sewer cleaning ST-49.1. Without centric hole, very good cleaning effect due to rotating nozzle jets.
ST-49.1 rotating sewer cleaning nozzle. Nozzle size 055. Female 1/4. Material Ss and brass . Made in Germany
Suttner rotating nozzle for sewer cleaning ST-49.1. Without centric hole, very good cleaning effect due to rotating nozzle jets.

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 055
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel
