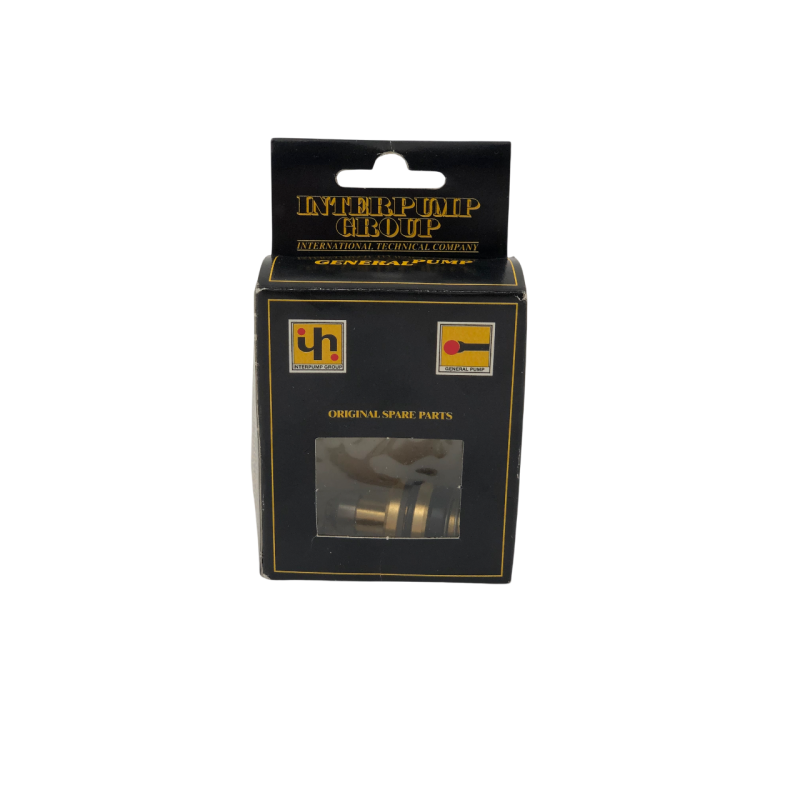

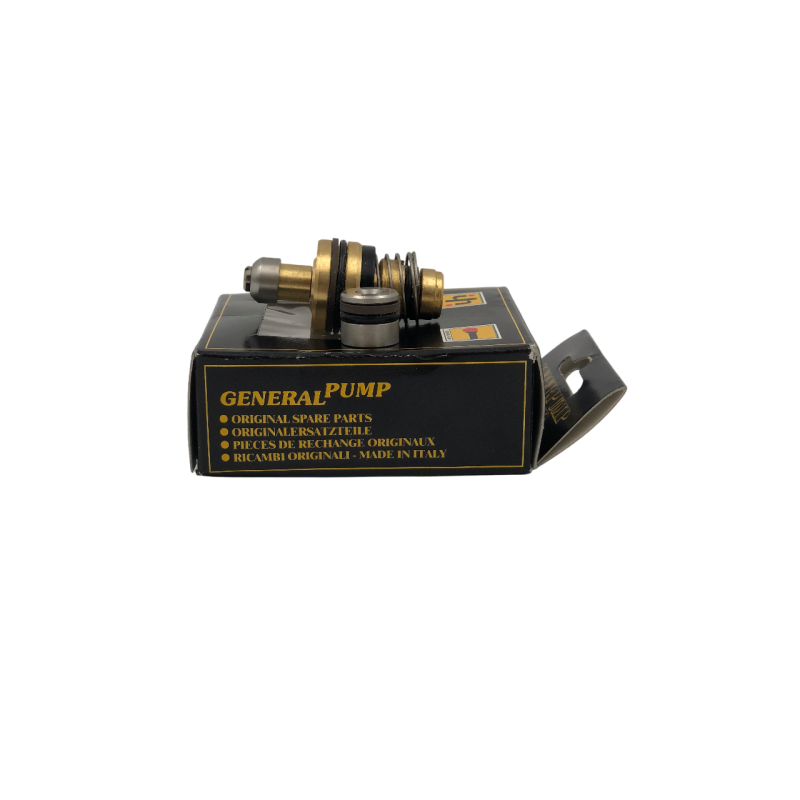

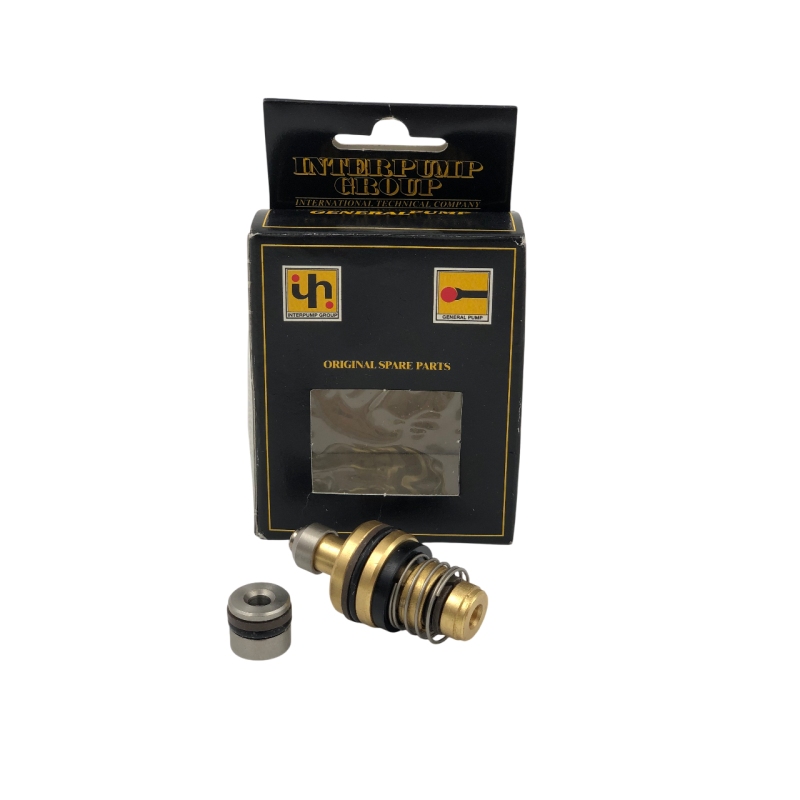

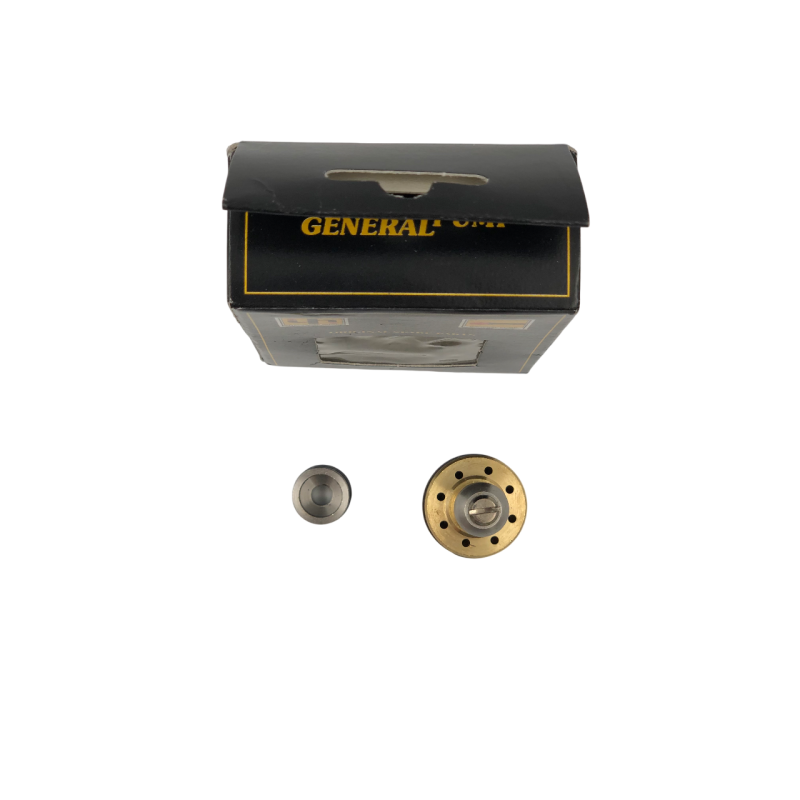

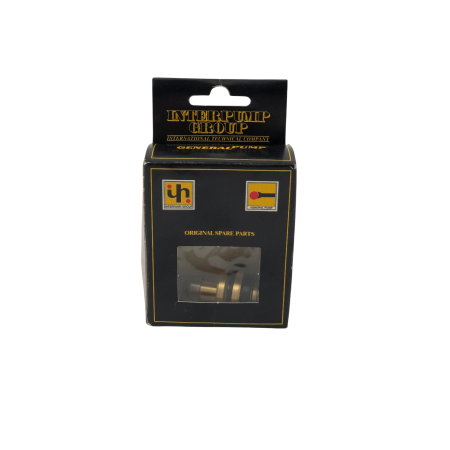

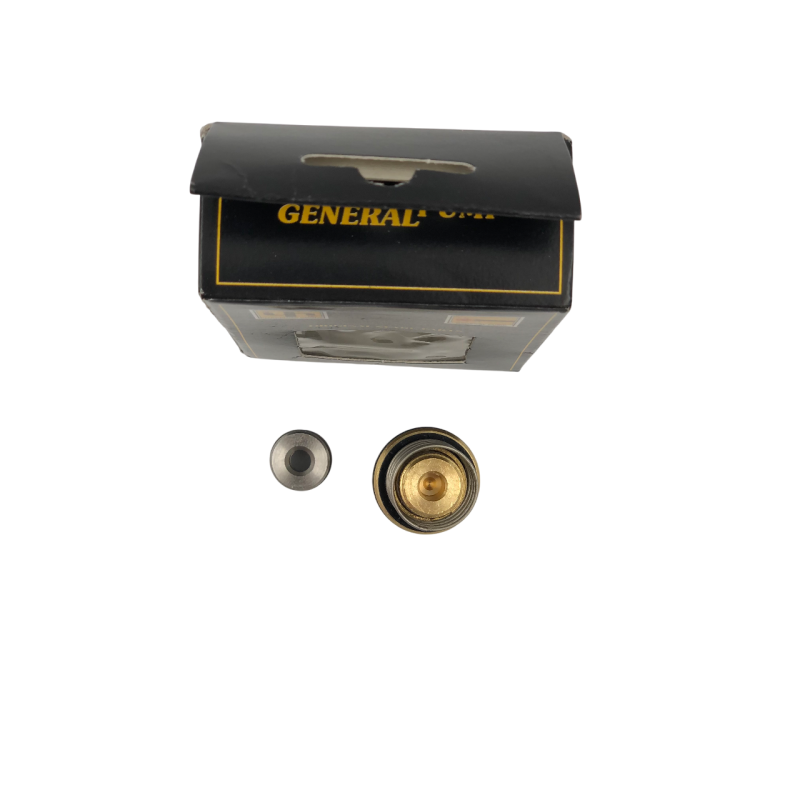

General Pump Repair Kit 137 - Unloader Repair Kit, For Triplex pumps TX, EZ Series 44, U, UI.

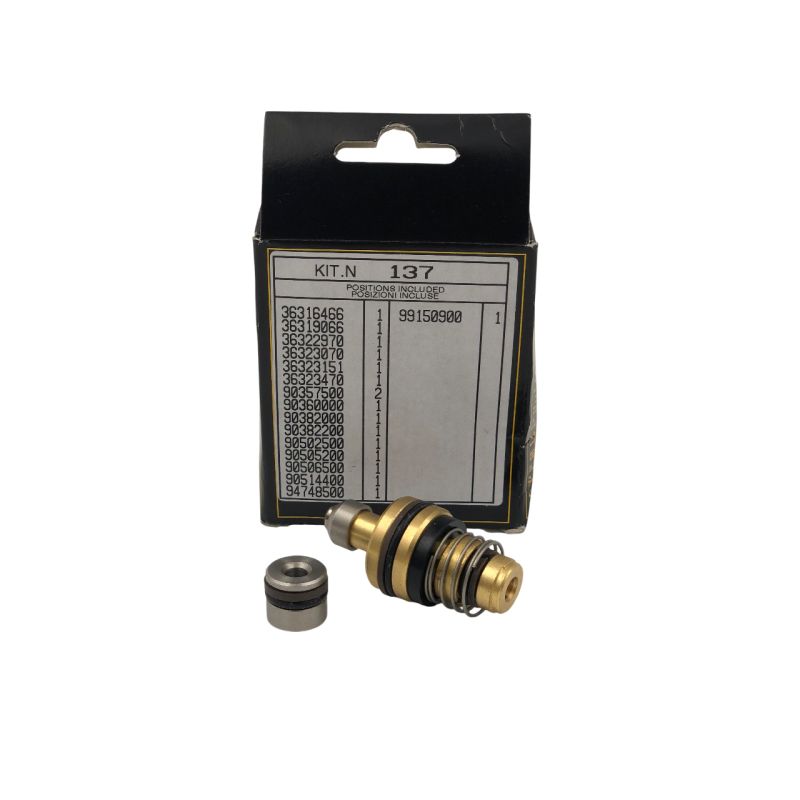

Consists of:
Anti-ext ring 90505200
O-ring 90382000
Sleeve 36323470
O-ring(2) 90357500
Anti-ext ring 90502500
Spacer 36323070
Spring 94748500
Valve 36323151
Valve guide 36322970
O-ring 90360000
Anti-ext ring 90514400
Spherical valve 36319066
Screw 99150900
Seat 36316466
O-ring 701614
Anti-ext ring 90506500
Annovi Reverberi seal Kit 1857 for 3 pistons Pump RK, RKA, RKV series 138
Consists of:
1701864 A&R valve repair kit 1864 for pump HXM, XT, XM, Ser. Blitz, X-PRO,KB, Hot, 6,7,9, 132, 178 (1269050)
Valve set for Annovi Reverberi HXM, XT,XM Series blitz, KB, x-pro, 6,7,9, 132, 178. A&R part number (1269050). Valve kit number 1864.
Consists of:
-6 Valves
-6 O-rings
1702747 A&R Seal Kit 2747 for 3 pistons, Pump XM, Series X-Pro, 9, 178
Consists of:
-O-ring X3
-Low pressure (suction) seal X3
-High pressure seal X3
-Seal kit for 3 pistons
A&R Ceramic piston kit 2758 pump series RK 228 RK18.20H, RK18.28H D20 Annovi Reverberi part number 1380930. A&R piston 20x40 mm.
Consists of:
-3 pieces
Valve set for Annovi Reverberi RK Series 138, 228. A&R part number (1389051).Valve kit number 2864.
Consists of:
Interpump/General pump Valve Kit 123 for pumps EZ, PP, TC, TP, TX.
Consists of:
Interpump/general pump seal Kit 127 d18 for EZ pumps
Consists of:
Foam injector lance with regulator and bottle. The new LS3, now with vertical nozzle. Nozzle size 1.25.
Inlet 1/4 Bsp F
Pressure 160 bar - 16 MPa - 2300 psi
Permissible Pressure 180 bar - 18 MPa - 2600 psi
Rated Flow Rate 12 l/min - 3.2 USGpm
Rated Temperature 60 °C - 140 °F
Tank 1 L - 0.264 USg
ST-35 Water intake suction foot filter. High flow suction strainer ideal for tank transfer or agricultural markets. Made in Germany.
SPECIFICATION:
-Without Check valve
-Stainless steel spring and screen
-Inlet Stepped 1/2" - 3/4"/13-19 mm/ hose barb
-Corrosion-resistant heavy impact resistant plastic
-Max temperature: 140°F
-Compatible with all pressure washers
-Brass weighted to hold onto bottom of tank
ST-357.1 Orifice size 06 Red. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.
Type: ST-357
Nozzle orifice: 06 Red
Spray angle 20°
Pressure range: 1450 - 3625 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Quick Screw Coupling (nipple) Brass suitable for karcher M22mX1,5:3/8"F
Maximum pressure: 5800 psi
Temperature: 300°F
Input: M22 M
Outlet: 3/8" F
Housing: brass
Height 29 mm
ST-40 Quick screw couplings M22fX1,5:3/8F. Suitable for Karcher and more.
Maximum pressure: 5800 psi
Temperature: 300°F
Input: M22 F
Outlet: 3/8" F
Housing: brass/plastic
Height 45 mm
ST-10 is 2 component nozzle protector. Made out of hard plastic and soft edge protecting sensitive surfaces against damage . Stainless steel body. The nozzle protector suitable for cold and hot water applications in the car wash, agriculture, food industry. ST-10 is unimpeachable, protects your nozzles and preserves the surfaces to be cleaned at the same time. Suitable for nozzles 1/8" M NPT.
Maximum pressure: 7250 psi
Rated temperature: 300°F
Input: 1/4 F NPT
Outlet: 1/8 F NPT
Housing: Stainless Steel
Protection material: Hard plastic/Soft edge
PA VT-6. Thermal relief valve. Valve bypasses water, reaching the off-temperature. High temperature pump protection valve with copper sonde.
Maximum pressure: 145 psi
Opening Temperature: 145°F
Input : 3/8 M
Output: hose tail 1/4
Housing material: brass
PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 06
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/8 "M.
Housing: Hardened stainless steel
ST-10 is a 2 component nozzle protector. It's made out of hard plastic and has soft edge which protects sensitive surfaces against damage. It also has a Stainless steel body. The nozzle protector is suitable for cold and hot water applications in the car wash, agriculture, and food industry. ST-10 is unimpeachable, it protects your nozzles and preserves the surfaces to be cleaned at the same time. Suitable for nozzles 1/4" M NPT.
Maximum pressure: 7250 psi
Rated temperature: 300°F
Input: 1/4 F NPT
Outlet: 1/4 F NPT
Housing: Stainless Steel
Protection material: Hard plastic/Soft edge

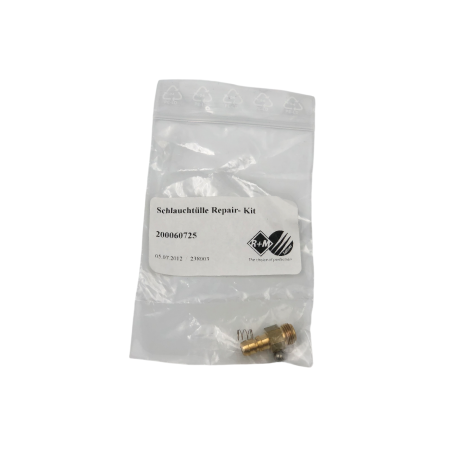

Metering valve, regular kit for ST-60.1 foam injector. Hose tail 6mm. Made in Germany. Suitable for all Suttner injectors ST-60, ST-60.1, ST-62.
Maximum Pressure 3625 PSI / 250 Bar
Maximum Temperature 140° F
Material Plastic
Hose tail 6mm/0.24 in
ST-49.1 rotating sewer cleaning nozzle. Nozzle size 05. Female 1/4. 3x0.8 Material Ss and brass . Made in Germany
Suttner rotating nozzle for sewer cleaning ST-49.1. Without centric hole, very good cleaning effect due to rotating nozzle jets.
Suttner ST-261 unloader valve without chemical injector max. pressure 3,625 PSI. Working components constructed of high-grade stainless steel. PTFE and Viton seals for maximum heat and chemical resistance. Straight flow-through design minimizes pressure loss through valve. Adjustable valve allows limit setting on both maximum and minimum pressures. Internal bypass valve can be easily accessed and repaired without removing unloader from unit.
Maximum pressure: 3625 psi
Minimum pressure: 500 psi
Maximum flow rate: 8 GPM
Temperature: 176°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 1/4 F
Housing: forged brass
PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 055
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/8 "M.
Housing: Hardened stainless steel
Flow Switch ST-7 1.5L/Min open 0.4 GPM
ST-7 Flow switch with micro-switch. Switch-on point 0.4 GPM. Mounts in any position horizontal or vertical.
SPECIFICATION:
-Maximum pressure: 5000 psi
-Minimum flow rate: 0.4 GPM
-Maximum flow rate: 12 GPM
-Temperature: 176°F
-Input : 3/8 F
-Outlet: 3/8 F
-Housing: Brass
-Brass reed switch cord length: 47"
-Contact: 10A-250 V
-International protection rating: IP 65
PR-5 Blue pressure switch is a fluid operating electro-mechanical device, which, upon reaching a pre-set (start-up)pressure 15 bar/218 PSI, opens or closes an electrical control contact . Microswitch with very high resistance openings. Considerable resistance to high current values. Compact overall dimension. Three core cable.
Maximum pressure: 5076 psi
Rated working pressure: 3650 psi
Minimum pressure: 218 psi
Temperature: 167°F
Input : 1/4 F
Housing material: brass
Cord length: 37"
Max Curr./V. strength Contact: 5A-250 V
International protection rating: IP 65
1702747 A&R Seal Kit 2747 for 3 pistons, Pump XM, Series X-Pro, 9, 178
Consists of:
-O-ring X3
-Low pressure (suction) seal X3
-High pressure seal X3
-Seal kit for 3 pistons
