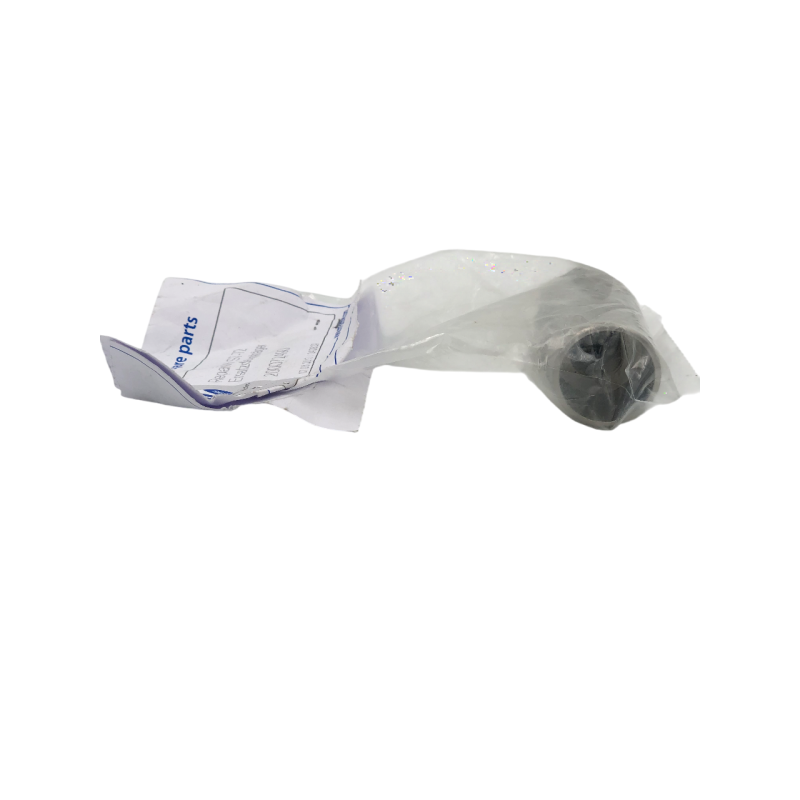

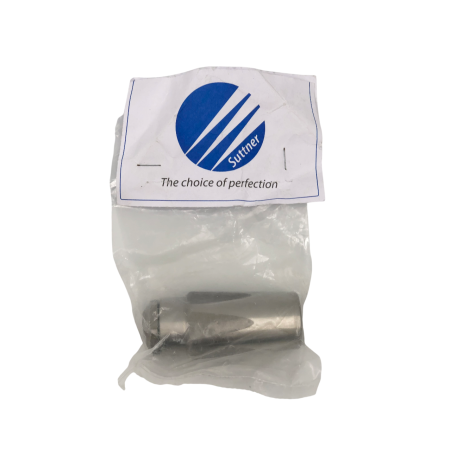

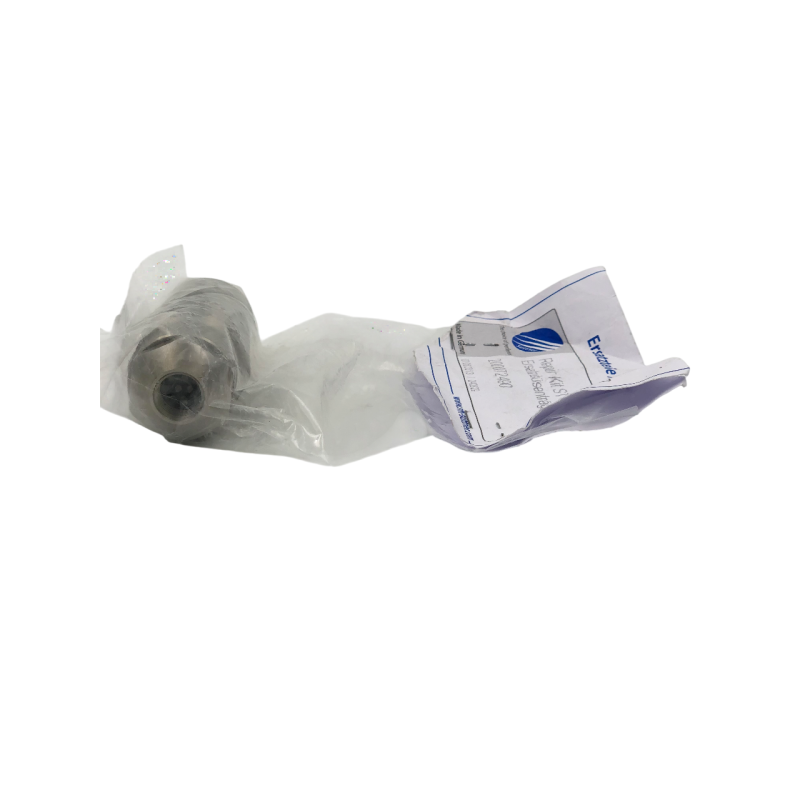

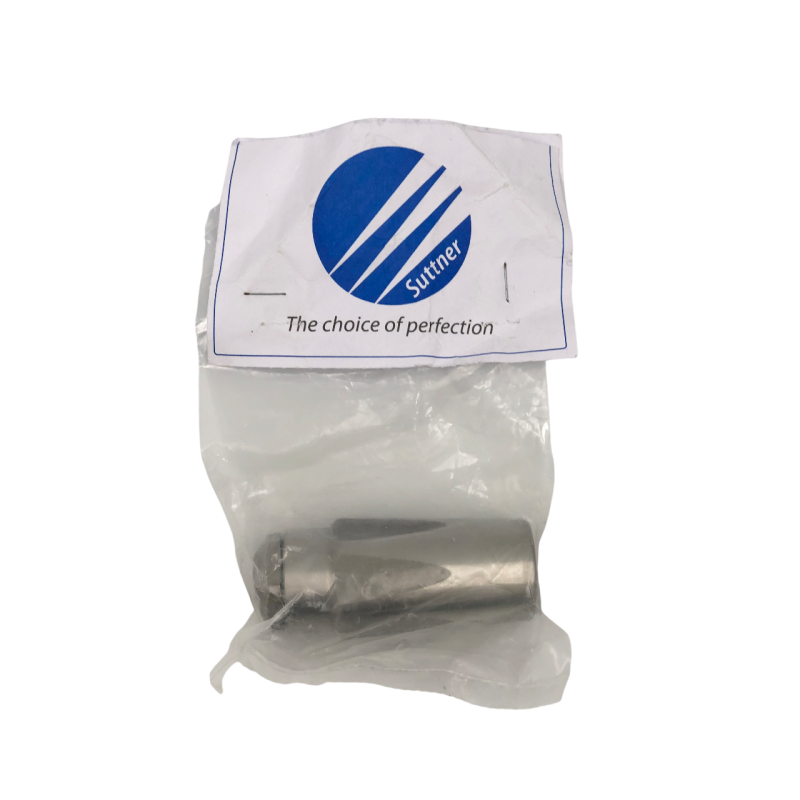

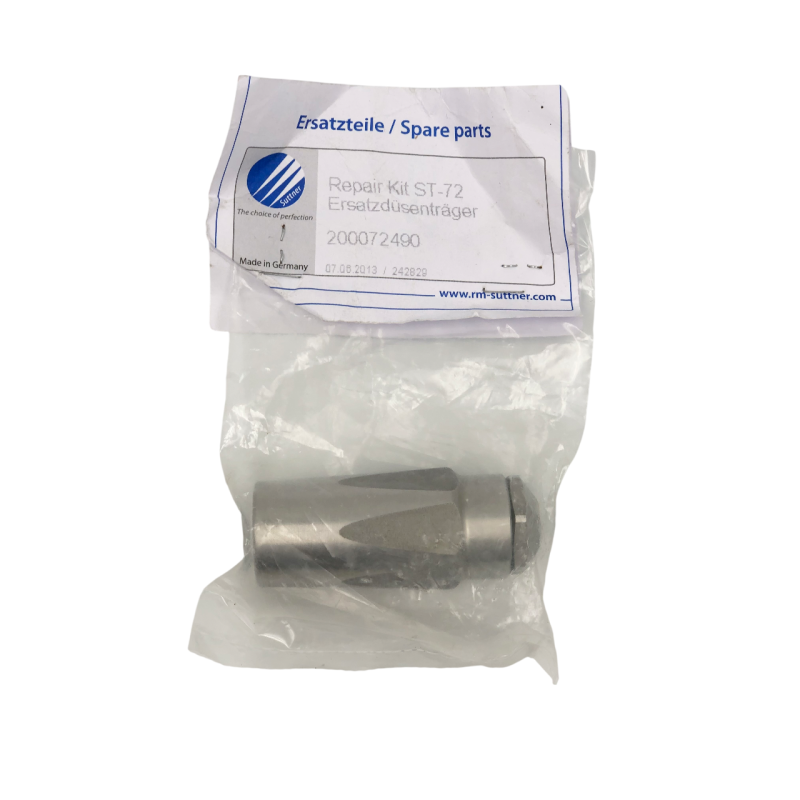

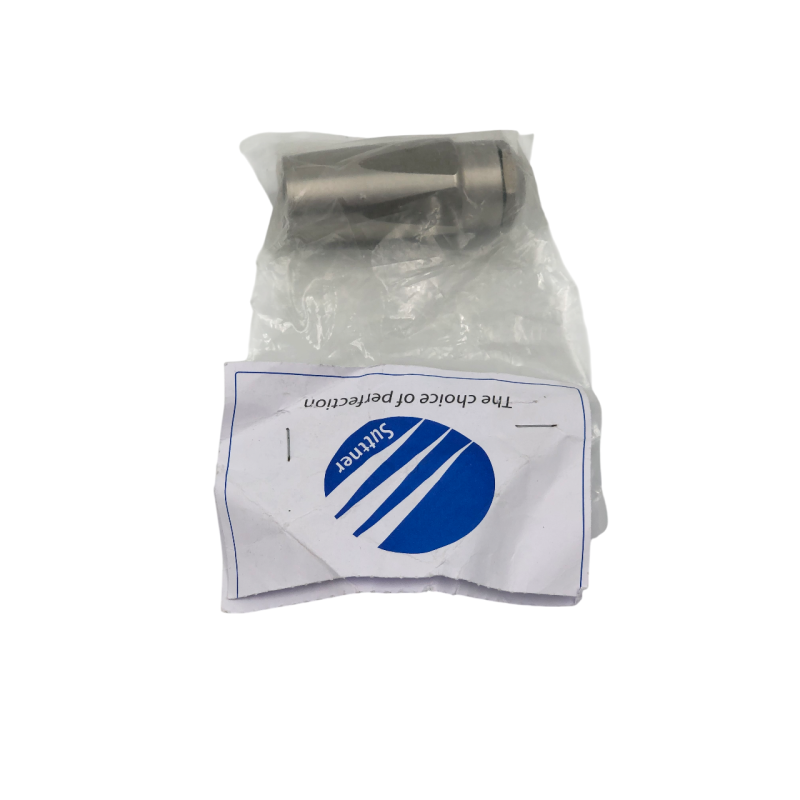

Suttner Nozzle Head Repair kit for ST-72 Foam Lance Stainless Steel

Quick Screw Coupling (nipple) M22X1,5:3/3"M

Maximum pressure: 5800 psi

Temperature: 300°F

Input: M22 M

Outlet: 3/8" M

Housing: brass

Height 29 mm

Suttner ST-54 Stainless Steel 38" Molded Handle,Twin lance. 15 degrees bended input 1/4"MPT, 2 outlets 1/4"F with nozzle ST-10 protector and low pressure nozzle. High pressure nozzle is NOT included. Made in Germany. For use when high and low pressures are needed.

For example, spraying cleaning agents with low pressure through an injector valve and then cleaning with high pressure. Lance 15° bended with molded handle, valve ST-54 aside, nozzle protector ST-10 with low pressure nozzle & 1/4" F thread

Pressure regulation valve VB-9 with knob, PR-5 switch and panel fitting. Brass valve body, stainless steel ball and seat. Hex-shaped non-stick check valve. Instant pressure response.

Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass
Max. Curr. Strenght 6 (2) A
Max. Voltage 250 V
Cord length: 39.4 in
International protection rating: IP 55

PR-5 Blue pressure switch is a fluid operating electro-mechanical device, which, upon reaching a pre-set (start-up)pressure 15 bar/218 PSI, opens or closes an electrical control contact . Microswitch with very high resistance openings. Considerable resistance to high current values. Compact overall dimension. Three core cable.

Maximum pressure: 5076 psi
Rated working pressure: 3650 psi
Minimum pressure: 218 psi
Temperature: 167°F
Input : 1/4 F
Housing material: brass
Cord length: 37"
Max Curr./V. strength Contact: 5A-250 V
International protection rating: IP 65

ST-1500 is a most popular professional spray gun in the market.The grip housing is from impact-resistant plastic. The valve body and connectors are corrosion-resistant. The trigger is equipped with a safety lock.

Maximum pressure: 4000 psi
Maximum flow rate: 12 GPM
Temperature: 300°F
Input connector: 3/8 F
Outlet: 1/4 F
Housing: forged brass

Suttner Pressure Switch ST-7.1 (RED-25 bar/362 psi) for Pressure Washer. Made in GERMANY

SPECIFICATION:

-Operating (start up) pressure: 25 bar/ 362 psi

-Rated pressure: 300bar/ 4350psi

-Rated temperature: 90C/ 194F

-Max Voltage: 250V

-Max Current strength: 10.1A

-Electrical Insulation rating: 65 IP

-Material: Brass

-Color: Black

-Inlet: 1/4” M

-Cable length: 950mm/ 37 Inches

ST- 2300 (old type) Relief valve intended for use on water-operated high-pressure systems such as high-pressure cleaners or water heaters.Adjustable pressure.Stainless steel ball and valve seat.

Maximum pressure: 5076 psi
Maximum flow rate: 8 GPM
Temperature: 200°F
Input : 1/4 F
Outlet: 1/4 F
Housing material: Forged brass

ST-31 Intake chemical strainer without check valve. Strainer prevents debris from entering and destroying the components. Hose barb 1/4 -1/8. Internal stainless steel weight keep chemical strainer in the bottom of the container.

Housing: plastic
Weight: stainless steel
Diameter: 20 mm / 0.8"
Length: 75 mm / 3"

ST-35 Water intake suction foot filter. High flow suction strainer ideal for tank transfer or agricultural markets. Made in Germany.

SPECIFICATION:

-Without Check valve

-Stainless steel spring and screen

-Inlet Stepped 1/2" - 3/4"/13-19 mm/ hose barb

-Corrosion-resistant heavy impact resistant plastic

-Max temperature: 140°F

-Compatible with all pressure washers

-Brass weighted to hold onto bottom of tank

Suttner ST-85 Stainless Steel 38" molded handle Push and Pull lance. Input 1/4"FPT, outlets 1/4"FPT with nozzle ST-10 protector. High pressure nozzle and side handle is NOT included. Made in Germany.

Especially designed for cleaning of places which are difficult to access such as containers, gutters, roofs, underneath fender walls, under vehicles, and heavy equipment. Lance variable adjustment of spraying angle from 20° to 140°. ST-85 Push & Pull lance with nozzle protector ST-10 without high pressure nozzle.

Suttner ST-2600 Pressure Washer Trigger Gun. Patented LTF technology. Inlet 3/8 F, Outlet 1/4 F

Professional, heavy duty, German made, Suttner ST-2600 with patented LTF technology (Low trigger force) pressure washer trigger gun. It comes with a 1/4” female outlet and 3/8 F inlet. Made in Germany.

Quick Screw Coupling (nipple) M22X1,5:1/4"M

Maximum pressure: 5800 psi

Temperature: 300°F

Input: M22 M

Outlet: 1/4 M

Housing: brass

Height 29 mm

ST-458.1 Orifice size 05 Black. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-458
Nozzle orifice: 05 Black
Spray angle 20°
Pressure range: 2900 - 5800 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F

ST-5 Flow switch (grey universal). Mounts in horizontal or vertical position (any position). Magnet with hole.

Maximum pressure: 5076 psi
Minimum pressure: 75 psi
Minimum flow rate: 1 GPM
Maximum flow rate: 7.8 GPM
Temperature: 180°F
Input : 3/8 F
Outlet: 3/8 F
Housing: brass
Brass reed switch cord length: 47"
Contact: 1A-250 V

Suttner ST-6 Flow Switch, All position (Horizontal or Vertical) Spring assisted brass magnet. Made in Germany

FEATURES:

-Horizontal or vertical mount

-Easy brass reed switch replacement.

SPECIFICATION:

-Max. Pressure: 5,070 PSI/350 bar.

-Min. Pressure: 75 PSI

-Max. Flow Rate: 8 GPM/ 30 ltr.

-Min. Flow Rate: 1 GPM

-Max Voltage: 250 V

-Max Current: 1 Amps

-Max: Fluid Temperature: 180° F/ 80 ° C

-Cable Length: 47.0 in/ 1200 mm.

-Inlet & Outlet: 3/8 MNPT

-Housing: Forged Brass

ST-40 Quick Screw Coupling M22X1,5F:1/4 F. Suitable for Karcher and more.

Maximum pressure: 5800 psi
Temperature: 300°F
Input: M22 F
Outlet: 1/4" F
Housing: brass/plastic
Height 45 mm
