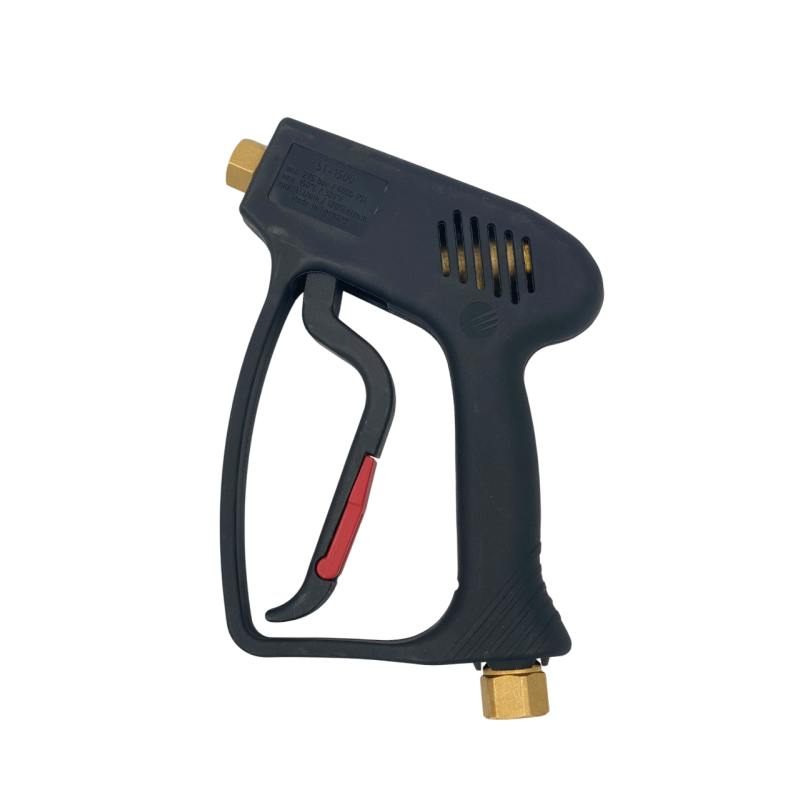

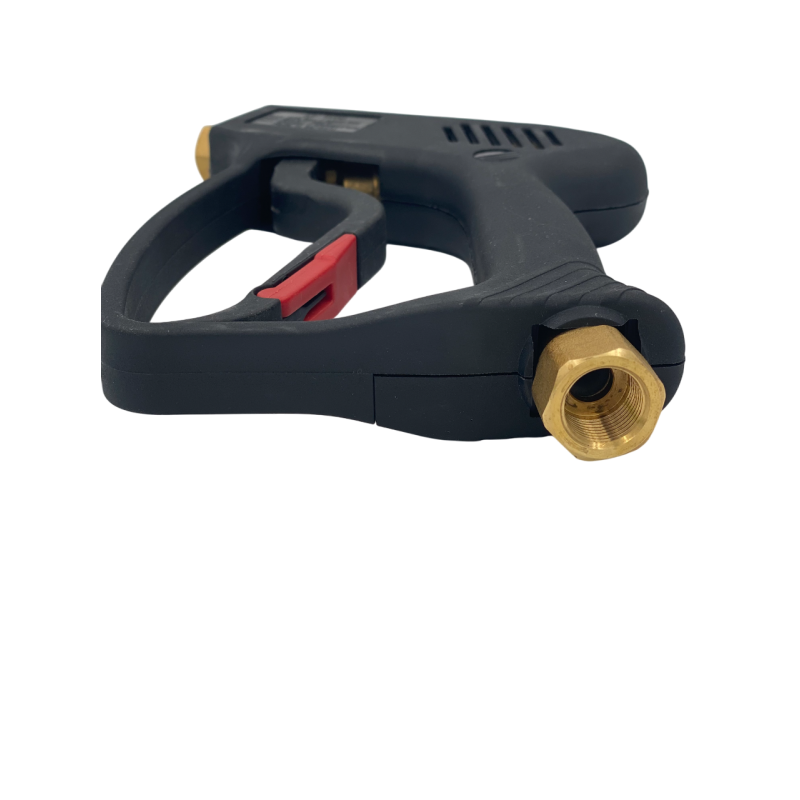

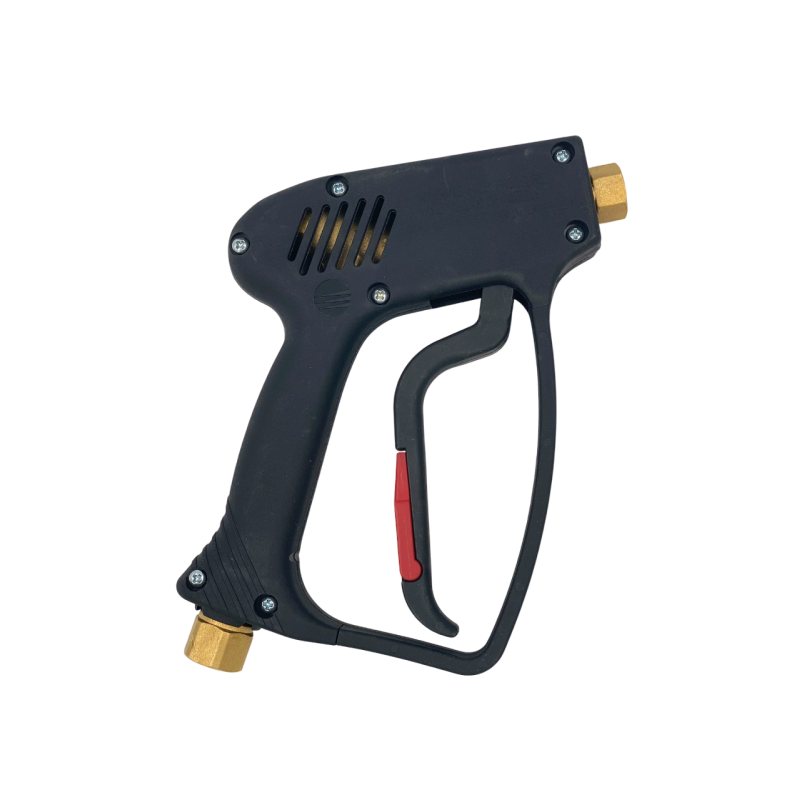

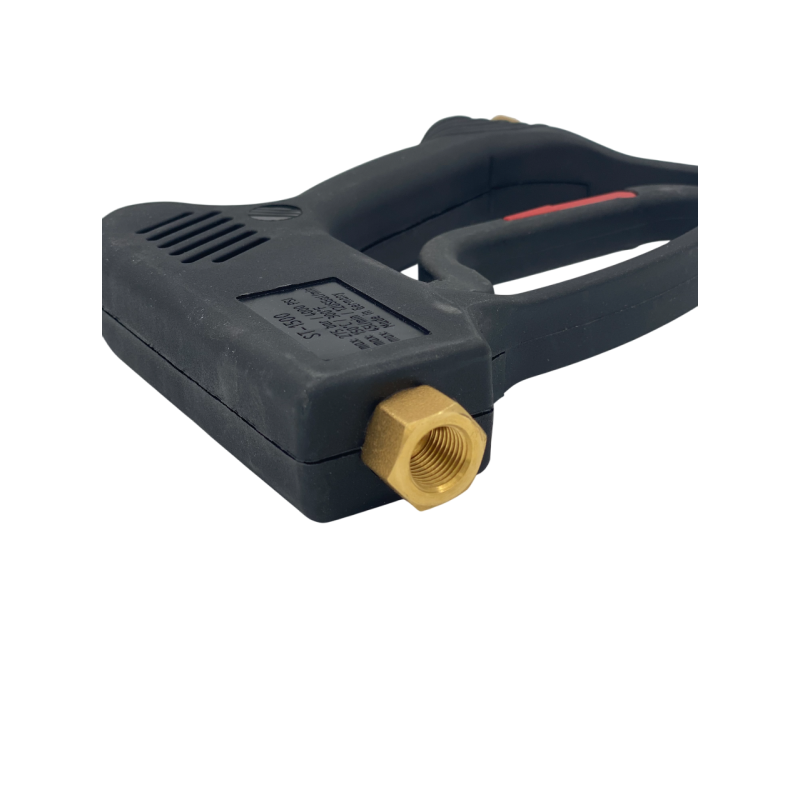

Wash Gun ST-1500 3/8"F:1/4"F

Suttner ST-72 Stainless Steel 24" FOAM LANCE, 2.9-3.96 GPM, 2.3 ORIFICE YELLOW COLLAR.

In conjunction with a spray gun and upstream or downstream injector, allows cleaning agents or disinfectants to be applied evenly over a large surface. Stainless steel construction ideal for food grade applications.

FEATURES:

-Thick foam is produced when air flows through vented injector housing and mixes with water and chemical stream.

-Wet foam allows more efficient use of chemical

-More durable than conventional foamers

-Color orifice indicator on handle end

-A foam injector is required

SPECIFICATION:

-Orifice: 2.3 Yellow Dot

-Flow Rates: 2.90 to 3.96 GPM

-Input: 1/4" FPT

-Length: 24"

-Temperature: 300 F maximum, 41 F minimum

-Pressure: 900 PSI maximum

ST-49 non-rotating sewer cleaning Grease ball nozzle. Female 1/4 8x06R. Ss hardened. Made in Germany

The Grease ball features 8 rear jets (0.6 mm) for extreme thrust and highest wall coverage of the pipe. Designed for the ability to clean grease off the sidewall of pipes but has proven to be great on root chokes too. Completely spherical shape. Nozzle drilling as stepped bore for best protection against mechanical impact. Good for 2”-6” inch lines.

ST- 2300 Relief valve intended for use on water-operated high-pressure systems such as high-pressure cleaners or water heaters. Adjustable pressure.Stainless steel ball and valve seat.

Seal possible.

Maximum pressure: 5076 psi
Maximum flow rate: 8 GPM
Temperature: 200°F
Input : 3/8 F
Outlet: 3/8 F
Housing material: Forged brass

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 05
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel

A&R Ceramic piston kit 2758 pump series RK 228 RK18.20H, RK18.28H D20 Annovi Reverberi part number 1380930. A&R piston 20x40 mm.

Consists of:

-3 pieces

Suttner ST-2300 Professional Pressure Washer Trigger Gun

New Professional, heavy duty, German made, Suttner ST-2300 pressure washer trigger gun. Comes with a 1/4” Female outlet and a heavy duty 3/8’’ Female inlet

SPECIFICATION:

-Maximum Pressure: 4500Psi/ 310 Bar

-Maximum Flow: 12 gal/min/ 45 Ltr/min

-Maximum Temperature: 300F/ 150C Degrees

-3/8" FNPT Inlet

-1/4" FNPT Outlet

-Safety Lock Feature

-Forged brass housing for maximum strength

-Handle constructed of impact resistant plastic

ST-10 is a 2 component nozzle protector. It's made out of hard plastic and has soft edge which protects sensitive surfaces against damage. It also has a Zinc-plated steel body. The nozzle protector is suitable for cold and hot water applications in the car wash, agriculture, and food industry. ST-10 is unimpeachable, it protects your nozzles and preserves the surfaces to be cleaned at the same time. Suitable for nozzles 1/4" M NPT.

Maximum pressure: 5800 psi
Rated temperature: 300°F
Input: 1/4 F NPT
Outlet: 1/4 F NPT
Housing: Zinc-plated steel
Protection material: Hard plastic/Soft edge

ST-7 Flow switch with micro-switch. Switch-on point 1.1GPM. Mounts in any position horizontal or vertical.

Maximum pressure: 5000 psi
Minimum flow rate: 1.1 GPM
Maximum flow rate: 12 GPM
Temperature: 176°F
Input : 3/8 F
Outlet: 3/8 F
Housing: brass
Brass reed switch cord length: 47"
Contact: 10A-250 V
International protection rating: IP 65

ST-357.1 Orifice size 07 Pink . Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-357
Nozzle orifice: 07 Pink
Spray angle 20°
Pressure range: 1450 - 3625 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F

ST-458.1 Orifice size 07 Pink. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-458
Nozzle orifice: 07 Pink
Spray angle 20°
Pressure range: 2900 - 5800 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F

Quick Screw Coupling (nipple) Brass suitable for karcher M22mX1,5:3/8"F

Maximum pressure: 5800 psi

Temperature: 300°F

Input: M22 M

Outlet: 3/8" F

Housing: brass

Height 29 mm

ST-49 non- rotating sewer cleaning root ram nozzle. Nozzle size 06. Female 1/4. Material Ss hardened. Made in Germany

The Root ram is equipped with 3 rear jets (30°) for maximum thrust and 3 additional nozzles (45°) right behind its nose for better cleaning results and wall coverage. The nozzle has proven to be ideal on root chokes. Good for 2"-6" lines.

ST-10 is a 2 component nozzle protector. It's made out of hard plastic and has soft edge which protects sensitive surfaces against damage. It also has a Stainless steel body. The nozzle protector is suitable for cold and hot water applications in the car wash, agriculture, and food industry. ST-10 is unimpeachable, it protects your nozzles and preserves the surfaces to be cleaned at the same time. Suitable for nozzles 1/4" M NPT.

Maximum pressure: 7250 psi
Rated temperature: 300°F
Input: 1/4 F NPT
Outlet: 1/4 F NPT
Housing: Stainless Steel
Protection material: Hard plastic/Soft edge

ST-456 Orifice size 07 Pink. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-456
Nozzle orifice: 07 pink
Spray angle 20°
Pressure range: 2900 - 5076 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Spray angle: 20°

The ST-2300 is a professional high pressure cleaning gun with coupling KW. Famous quick coupling system for accessories, quicker to connect and disconnect lance, reducing downtime.(KEW, Nilfisk- Alto) The grip housing is from impact-resistant plastic. The valve body and connectors are corrosion-resistant. The trigger is equipped with a safety lock.

Maximum pressure: 4500 psi
Minimum pressure: 145 psi
Recommended pressure: 4000 psi
Maximum flow rate: 12 GPM
Temperature: 300°F
Input connector: 3/8 F
Outlet: Coupling KW
Housing: forged brass

Suttner ST-261 unloader valve without chemical injector max. pressure 3,625 PSI. Working components constructed of high-grade stainless steel. PTFE and Viton seals for maximum heat and chemical resistance. Straight flow-through design minimizes pressure loss through valve. Adjustable valve allows limit setting on both maximum and minimum pressures. Internal bypass valve can be easily accessed and repaired without removing unloader from unit.

Maximum pressure: 3625 psi
Minimum pressure: 500 psi
Maximum flow rate: 8 GPM
Temperature: 176°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 1/4 F
Housing: forged brass
