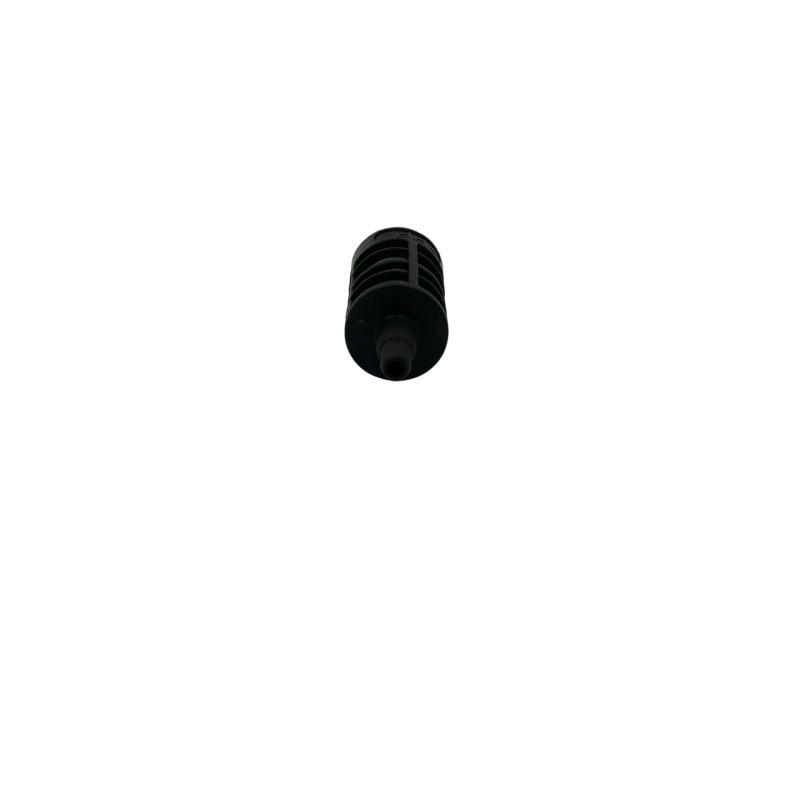

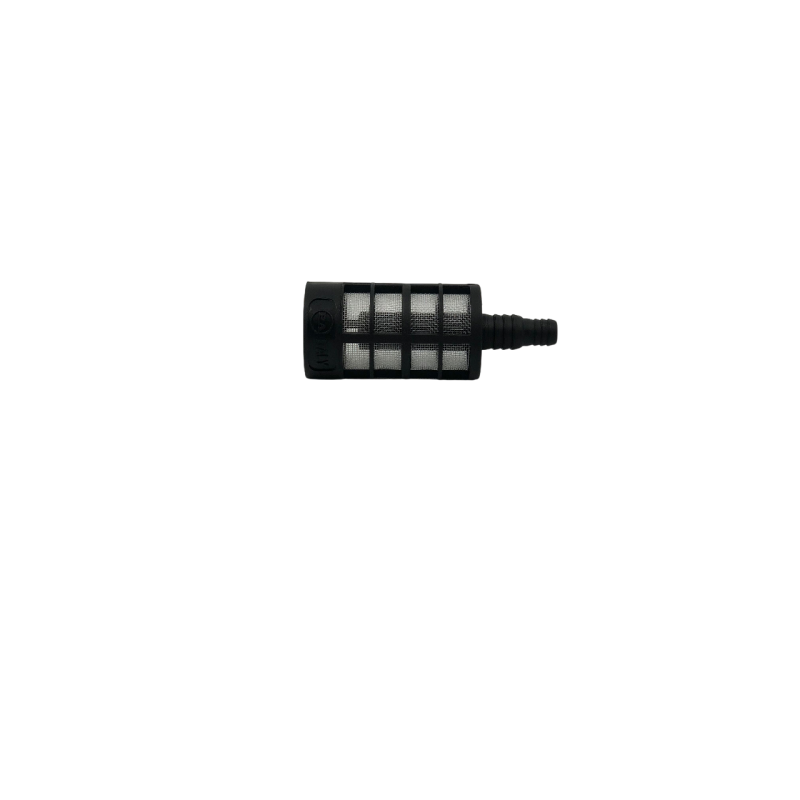

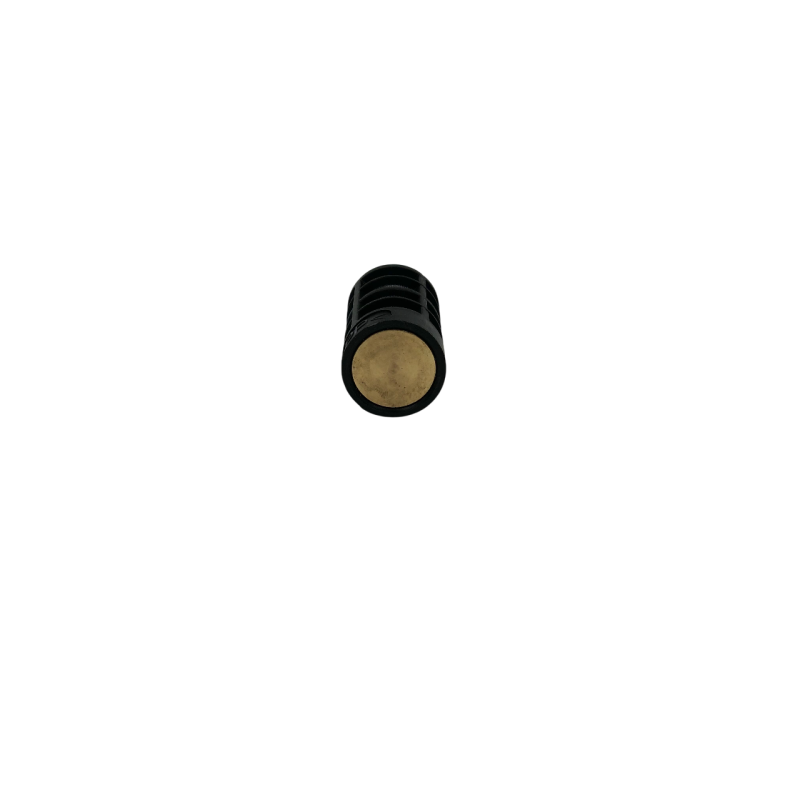

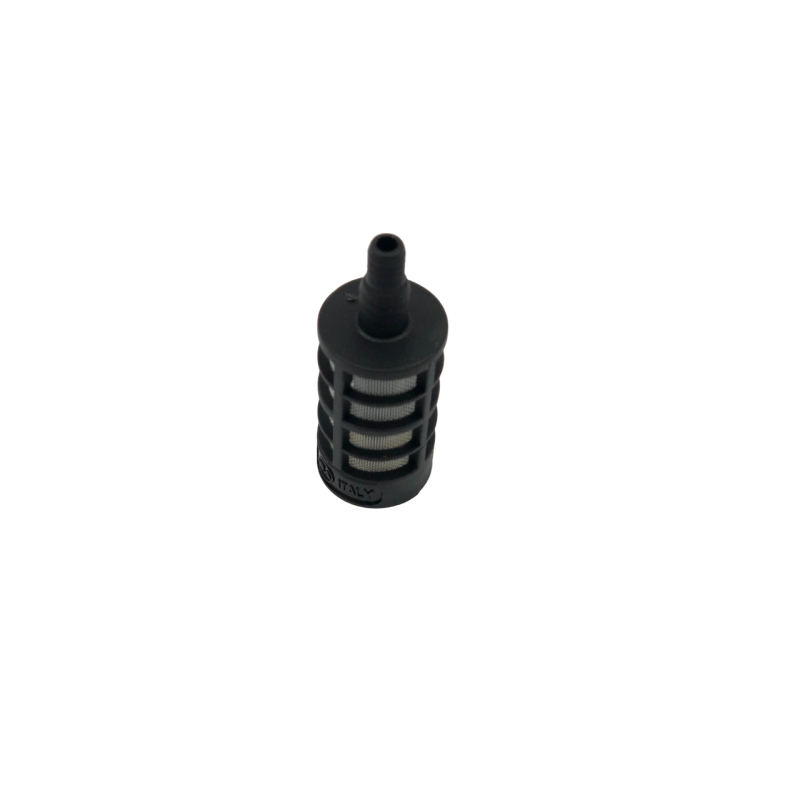

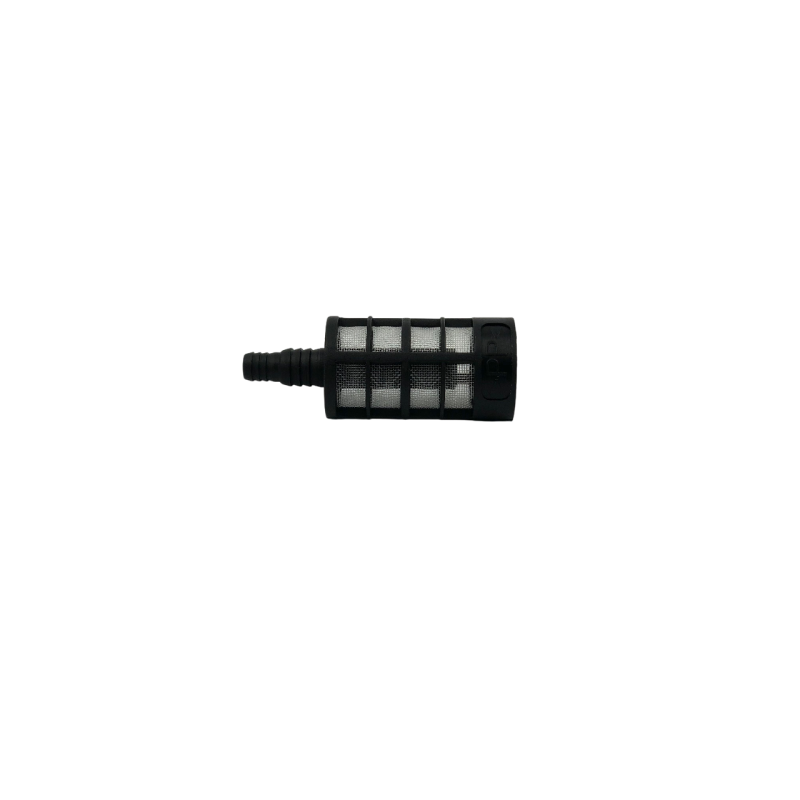

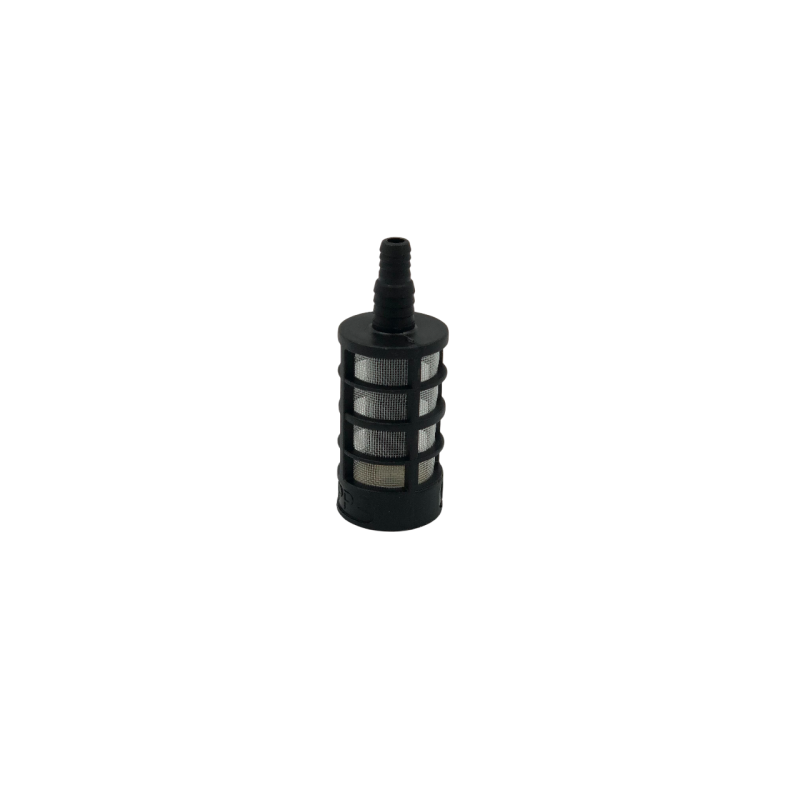

PA Fine Water Filter 355 Microns. Chemical resistant detergent strainer. Without check valve. Stainless steel screen with brazen bottom weight. Inlet barb 6-8mm. Made in Italy.
Without check valve
Corrosion plastic body with stainless steel screen
Stepped 0.24/6 - 0.32/8 in/mm hose barb
Fine filter 51 mesh 355 Microns
Height 55mm
Diameter 22mm
Temperature 104° F
Weight 0.7 oz
ST-31 Intake chemical strainer without check valve. Strainer prevents debris from entering and destroying the components. Hose barb 1/4 -1/8. Internal stainless steel weight keep chemical strainer in the bottom of the container.
Housing: plastic
Weight: stainless steel
Diameter: 20 mm / 0.8"
Length: 75 mm / 3"
ST-456 Orifice size 07 Pink. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.
Type: ST-456
Nozzle orifice: 07 pink
Spray angle 20°
Pressure range: 2900 - 5076 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Spray angle: 20°
ST-40 Quick Screw Coupling M22fX1,5:3/8 M. Suitable for Karcher and more.
Maximum pressure: 5800 psi
Temperature: 300°F
Input: M22 F
Outlet: 3/8" M
Housing: brass/plastic
Height 46 mm
Flow Switch ST-7 1.5L/Min open 0.4 GPM
ST-7 Flow switch with micro-switch. Switch-on point 0.4 GPM. Mounts in any position horizontal or vertical.
SPECIFICATION:
-Maximum pressure: 5000 psi
-Minimum flow rate: 0.4 GPM
-Maximum flow rate: 12 GPM
-Temperature: 176°F
-Input : 3/8 F
-Outlet: 3/8 F
-Housing: Brass
-Brass reed switch cord length: 47"
-Contact: 10A-250 V
-International protection rating: IP 65
Suttner ST-261 unloader valve without chemical injector max. pressure 3,625 PSI. Working components constructed of high-grade stainless steel. PTFE and Viton seals for maximum heat and chemical resistance. Straight flow-through design minimizes pressure loss through valve. Adjustable valve allows limit setting on both maximum and minimum pressures. Internal bypass valve can be easily accessed and repaired without removing unloader from unit.
Maximum pressure: 3625 psi
Minimum pressure: 500 psi
Maximum flow rate: 8 GPM
Temperature: 176°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 1/4 F
Housing: forged brass
PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 05
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel
ST-35 Water intake suction foot filter. High flow suction strainer ideal for tank transfer or agricultural markets. Made in Germany.
SPECIFICATION:
-Without Check valve
-Stainless steel spring and screen
-Inlet Stepped 1/2" - 3/4"/13-19 mm/ hose barb
-Corrosion-resistant heavy impact resistant plastic
-Max temperature: 140°F
-Compatible with all pressure washers
-Brass weighted to hold onto bottom of tank
ST-49.1 rotating sewer cleaning nozzle. Nozzle size 055. Female 1/8. Material Ss and brass . Made in Germany
Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 1”-3” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.
St-33 Water intake T-strainer filter complete with filter fine core washable (stainless steel and plastic).
Maximum pressure: 87 psi
Maximum flow rate: 13.2 GPM
Temperature: 140°F
Input: 3/4 F
Outlet: 3/4 M
Housing: plastic
Screen material: stainless steel+plastic
Screen Microns: 50
St - 2000 is a extreme heavy duty industrial pressure washer gun.The valve body and connectors are corrosion-resistant. The trigger is equipped with a safety lock.
Maximum pressure: 4000 psi
Maximum flow rate: 12 GPM
Temperature: 300°F
Input connector: 3/8 F
Outlet: 1/4 F
Housing: forged brass
1702747 A&R Seal Kit 2747 for 3 pistons, Pump XM, Series X-Pro, 9, 178
Consists of:
-O-ring X3
-Low pressure (suction) seal X3
-High pressure seal X3
-Seal kit for 3 pistons
PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is :3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 045
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/8 "M.
Housing: Hardened stainless steel
Suttner ST-2300 Professional Pressure Washer Trigger Gun
New Professional, heavy duty, German made, Suttner ST-2300 pressure washer trigger gun. Comes with a 1/4” Female outlet and a heavy duty 3/8’’ Female inlet
SPECIFICATION:
-Maximum Pressure: 4500Psi/ 310 Bar
-Maximum Flow: 12 gal/min/ 45 Ltr/min
-Maximum Temperature: 300F/ 150C Degrees
-3/8" FNPT Inlet
-1/4" FNPT Outlet
-Safety Lock Feature
-Forged brass housing for maximum strength
-Handle constructed of impact resistant plastic
Metering valve, regular kit for ST-60.1 foam injector. Hose tail 6mm. Made in Germany. Suitable for all Suttner injectors ST-60, ST-60.1, ST-62.
Maximum Pressure 3625 PSI / 250 Bar
Maximum Temperature 140° F
Material Plastic
Hose tail 6mm/0.24 in
ST-456 Orifice size 06 Red. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.
Type: ST-456
Nozzle orifice: 06 Red
Spray angle 20°
Pressure range: 2900 - 5076 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Spray angle: 20°
ST-49.1 rotating sewer cleaning nozzle. Nozzle size 045. Female 1/8. Material Ss and brass . Made in Germany
Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 1”-3” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.
Nozzle protector. It's made out of soft Rubber which protects sensitive surfaces against damage. It also has a zinc-plated body. The nozzle protector is suitable for cold and hot water applications in the car wash, agriculture. Suitable for nozzles 1/4" M NPT.
Maximum pressure: 5800 psi
Rated temperature: 300°F
Input: 1/4 F NPT
Outlet: 1/4 F NPT
Housing: Zinc-plated steel
Protection material: Rubber
