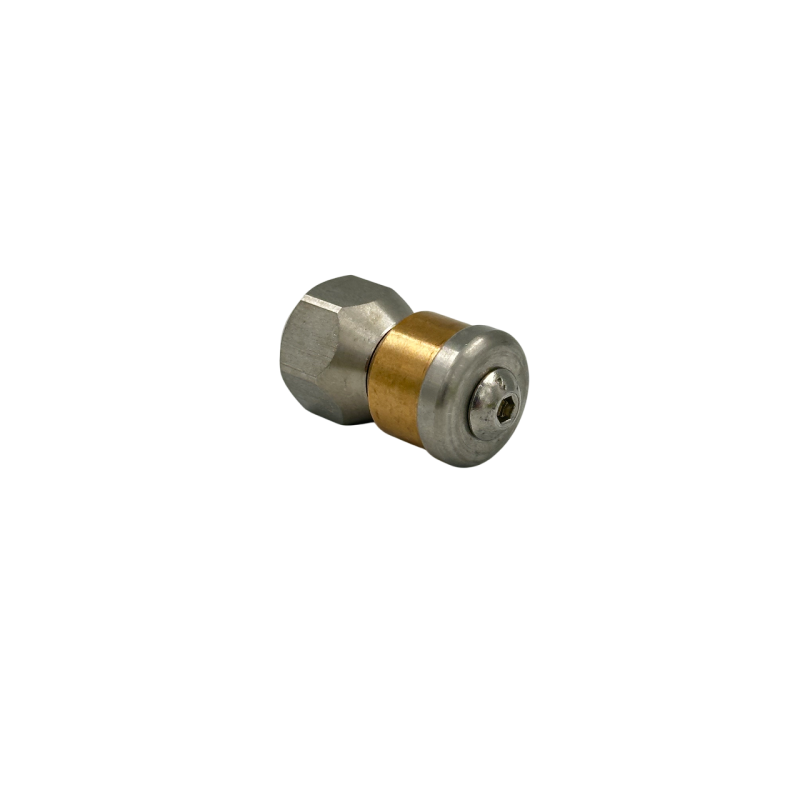

ST-49.1 Rotating Sewer Cleaning Nozzle (Nozzle size 045, Female 1/8)

PA VT-6. Thermal relief valve. Valve bypasses water, reaching the off-temperature. High temperature pump protection valve with copper sonde.

Maximum pressure: 145 psi
Opening Temperature: 145°F
Input : 3/8 M
Output: hose tail 1/4
Housing material: brass

General Pump Repair Kit 137 - Unloader Repair Kit, For Triplex pumps TX, EZ Series 44, U, UI.

Consists of:

Anti-ext ring 90505200

O-ring 90382000

Sleeve 36323470

O-ring(2) 90357500

Anti-ext ring 90502500

Spacer 36323070

Spring 94748500

Valve 36323151

Valve guide 36322970

O-ring 90360000

Anti-ext ring 90514400

Spherical valve 36319066

Screw 99150900

Seat 36316466

O-ring 701614

Anti-ext ring 90506500

ST-7 Flow switch with micro-switch. Switch-on point 1.1GPM. Mounts in any position horizontal or vertical.

Maximum pressure: 5000 psi
Minimum flow rate: 1.1 GPM
Maximum flow rate: 12 GPM
Temperature: 176°F
Input : 3/8 F
Outlet: 3/8 F
Housing: brass
Brass reed switch cord length: 47"
Contact: 10A-250 V
International protection rating: IP 65

Repair kit Unloader valve ST-291 Micro-switch kit with cable.

Temperature 176° F

Housing Plastic

Reed switch cord length 47"

Contact 5A - 125/250V

International protection rating IP 67

Suttner ST 73.1 High flow foam injector lance with large 64 oz. Bottle, Stainless steel Integrated Chemical Injector size 1.8, 1/4" F Inlet. Convenient and portable for more effective foam cleaning for Industry, Agriculture, Atuomotive/Fleet and institutional applications!

The ST-73 foam lance is fitted with an interchangeable injector nozzle and a foaming pad. By turning an adjustable grip handle the concentration of foaming agent in the water can be adjusted.

Pressure 1000 - 3625 PSI

Flow Rate 3.4 - up to 8 GPM

Max Temp 175° F

Inlet 1/4" Female

Bottle 64 oz.

Weight 1.20 lb

ST-458.1 Orifice size 05 Black. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-458
Nozzle orifice: 05 Black
Spray angle 20°
Pressure range: 2900 - 5800 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 05. Female 3/8. Material Ss and brass . Made in Germany

Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 4”-8” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is :3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 04
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel

Quick Screw Coupling (nipple) M22X1,5:3/3"M

Maximum pressure: 5800 psi

Temperature: 300°F

Input: M22 M

Outlet: 3/8" M

Housing: brass

Height 29 mm

ST-458.1 Orifice size 06 Red. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-458
Nozzle orifice: 06 Red
Spray angle 20°
Pressure range: 2900 - 5800 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 05. Female 1/8. Material Ss and brass . Made in Germany

Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 1”-3” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.

Foam injector lance with regulator and bottle. The new LS3, now with vertical nozzle. Nozzle size 1.25.

Inlet 1/4 Bsp F
Pressure 160 bar - 16 MPa - 2300 psi
Permissible Pressure 180 bar - 18 MPa - 2600 psi
Rated Flow Rate 12 l/min - 3.2 USGpm
Rated Temperature 60 °C - 140 °F
Tank 1 L - 0.264 USg

Suttner ST-6 Flow Switch, All position (Horizontal or Vertical) Spring assisted brass magnet. Made in Germany

FEATURES:

-Horizontal or vertical mount

-Easy brass reed switch replacement.

SPECIFICATION:

-Max. Pressure: 5,070 PSI/350 bar.

-Min. Pressure: 75 PSI

-Max. Flow Rate: 8 GPM/ 30 ltr.

-Min. Flow Rate: 1 GPM

-Max Voltage: 250 V

-Max Current: 1 Amps

-Max: Fluid Temperature: 180° F/ 80 ° C

-Cable Length: 47.0 in/ 1200 mm.

-Inlet & Outlet: 3/8 MNPT

-Housing: Forged Brass

The ST-2300 is a professional high pressure cleaning gun (hot/cold water). The grip housing is from an impact-resistant plastic. The valve body and connectors are both corrosion-resistant. The trigger is equipped with a safety lock and rotating swivel joint that the high pressure hose cannot be turned so as to unscrew the connection between high pressure hose and spray gun a swivel joint may be used. By means of this swivel joint the gun may be turned slightly when in an unpressured state in relation to the hose. With increasing pressure the swivel joint becomes increasingly difficult to turn.

Maximum pressure: 4500 psi
Recommended pressure: 4000 psi
Maximum flow rate: 12 GPM
Temperature: 300°F
Input connector: swivel 3/8 F
Outlet: connector 1/4 F
Housing: forged brass

Pressure regulation valve VB 9 with knob and panel fitting. Brass valve body, stainless steel ball and seat. Hex-shaped non-stick check valve.

Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 06
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/8 "M.
Housing: Hardened stainless steel
