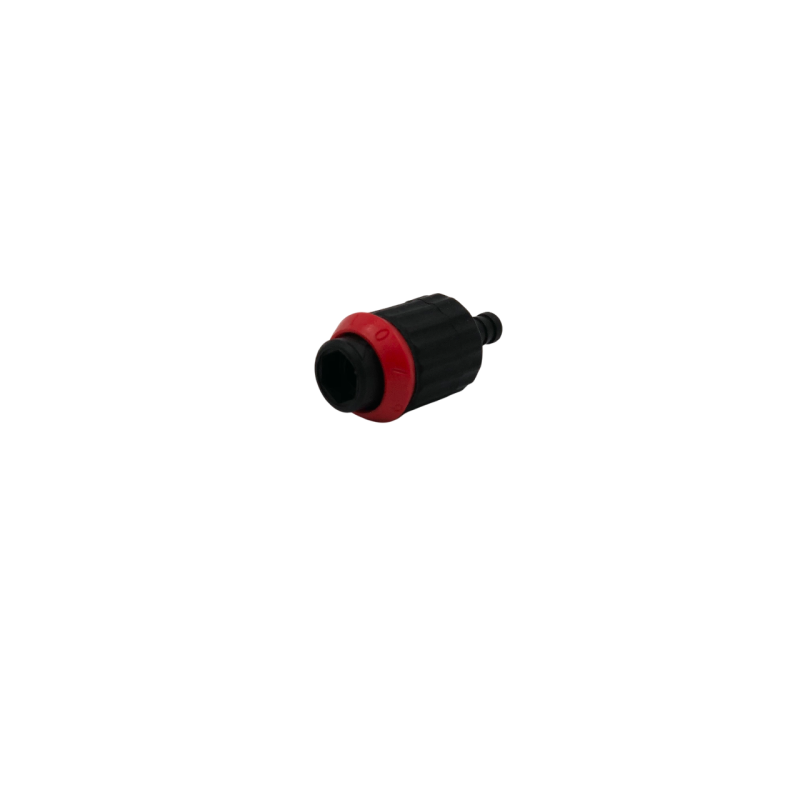

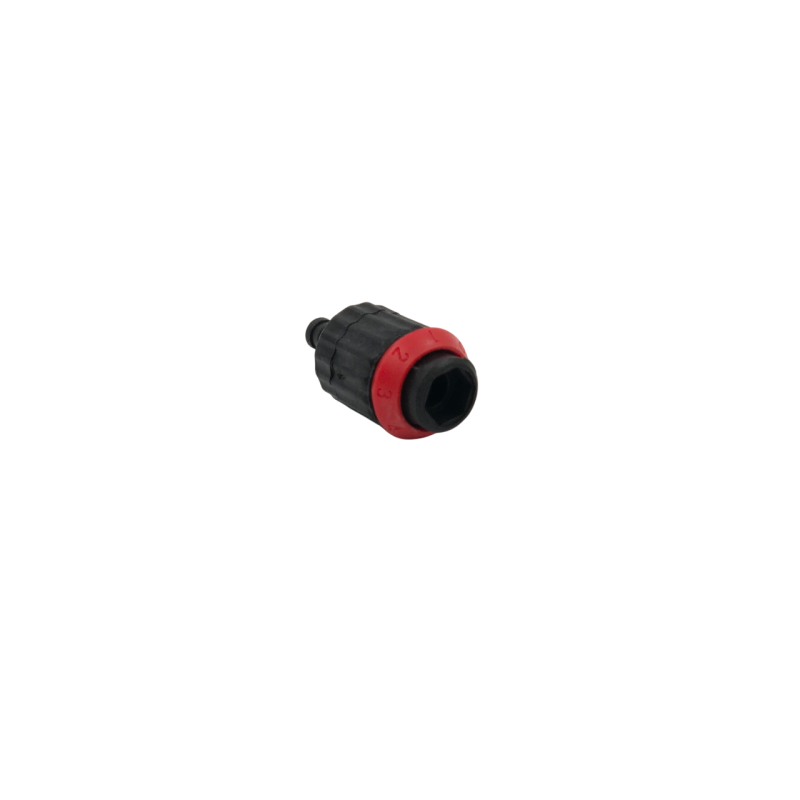

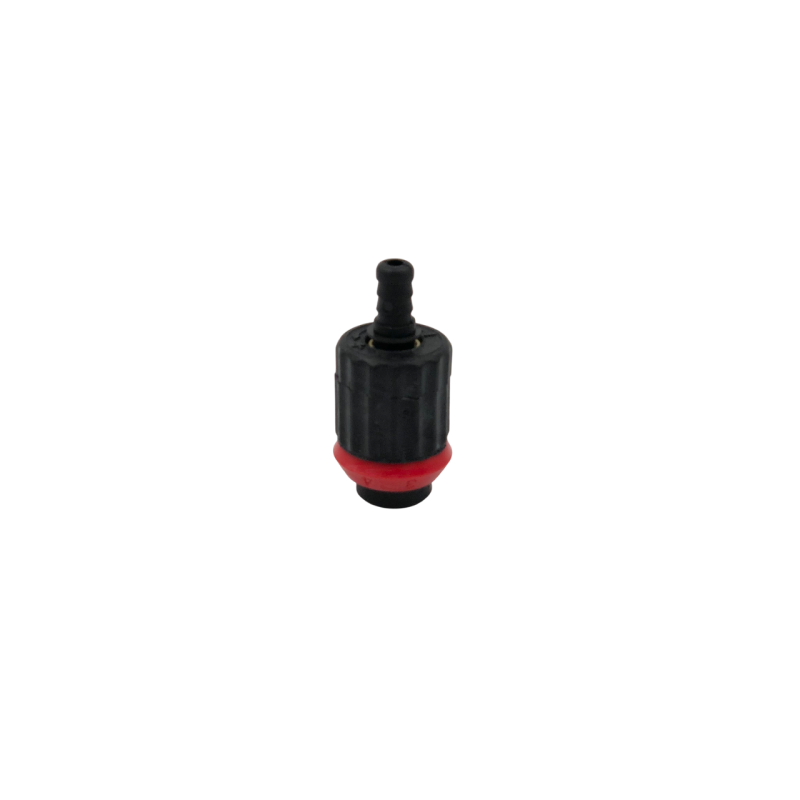

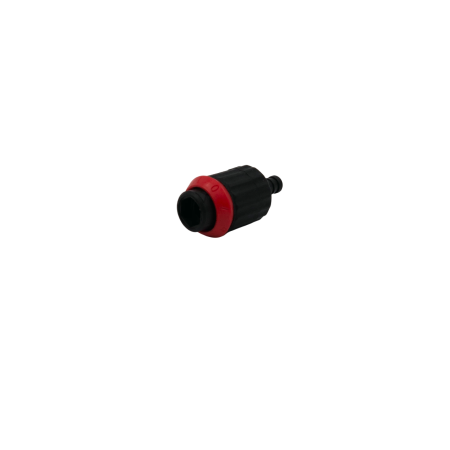

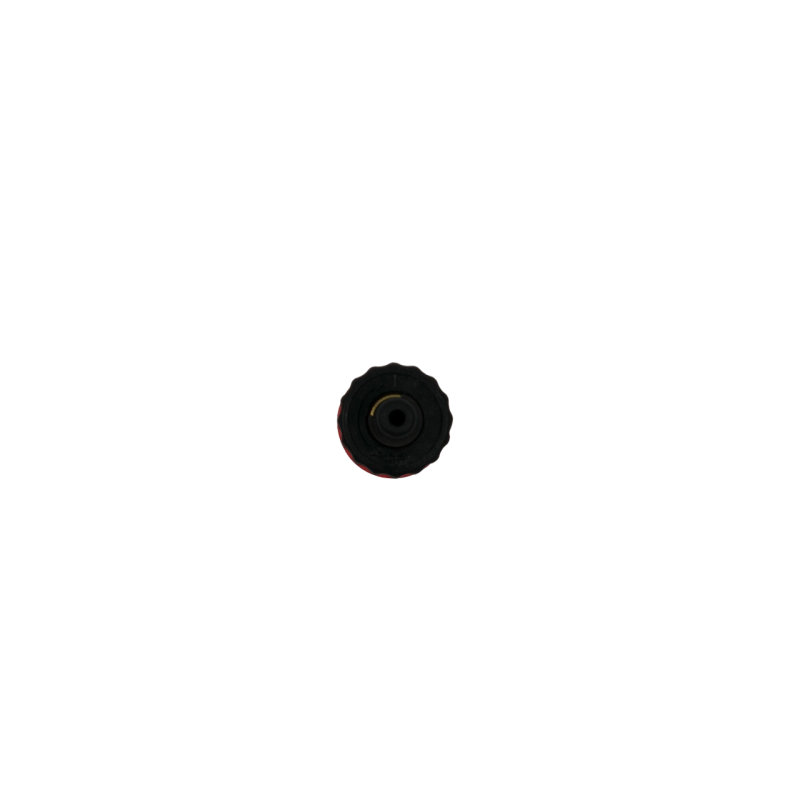

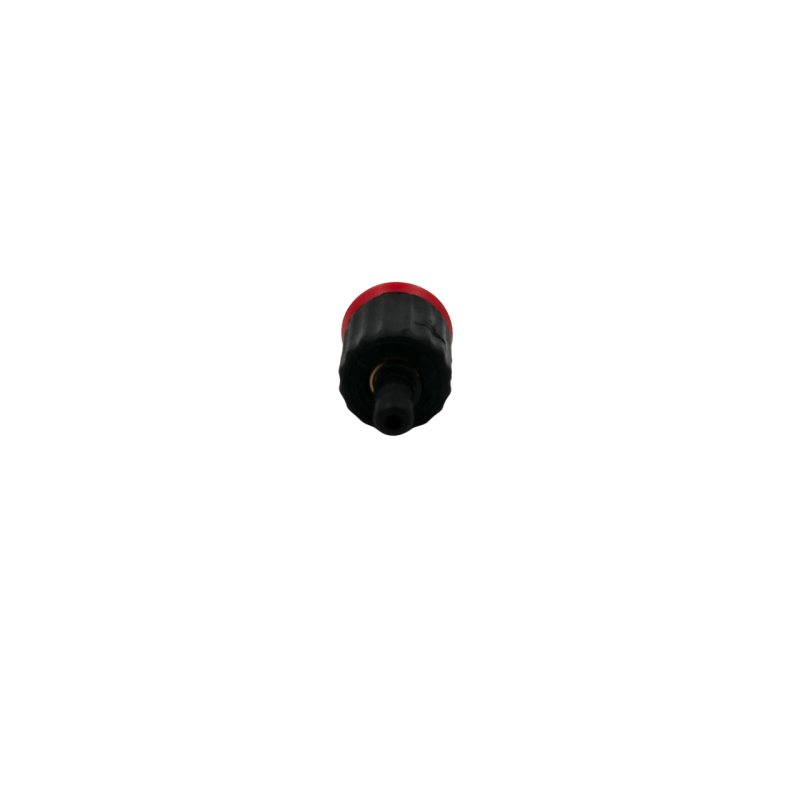

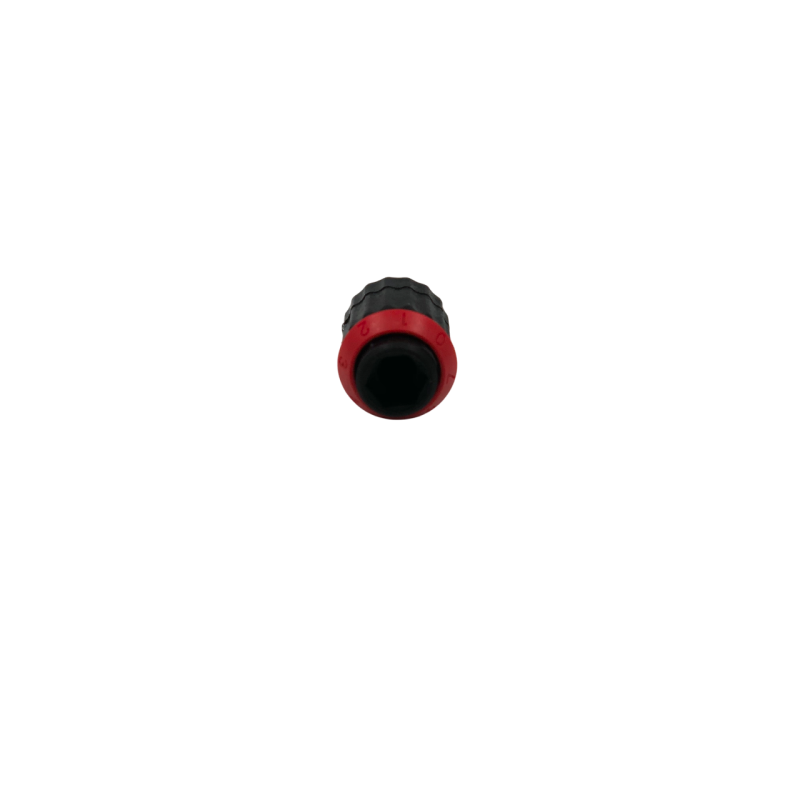

Suttner Metering valve for foam injector ST-60.1

Valve set for Annovi Reverberi RK Series 138, 228. A&R part number (1389051).Valve kit number 2864.

Consists of:

• 6 valves
• 6 O-rings

Suttner ST-6 Flow Switch, All position (Horizontal or Vertical) Spring assisted brass magnet. Made in Germany

FEATURES:

-Horizontal or vertical mount

-Easy brass reed switch replacement.

SPECIFICATION:

-Max. Pressure: 5,070 PSI/350 bar.

-Min. Pressure: 75 PSI

-Max. Flow Rate: 8 GPM/ 30 ltr.

-Min. Flow Rate: 1 GPM

-Max Voltage: 250 V

-Max Current: 1 Amps

-Max: Fluid Temperature: 180° F/ 80 ° C

-Cable Length: 47.0 in/ 1200 mm.

-Inlet & Outlet: 3/8 MNPT

-Housing: Forged Brass

ST-456 Orifice size 06 Red. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-456
Nozzle orifice: 06 Red
Spray angle 20°
Pressure range: 2900 - 5076 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Spray angle: 20°

ST-60.1 Downstream Suttner foam injector with chemical metering valve, suction hose and ST-31 chemical strainer, quick couplings nickel/zinc plated brass ST-45-250 KEW, Nilfisk-Alto. Mixing of chemicals approx. 0-11.5%.Metering valve hose tail 1/4. Suction hose 39" long.Injector with dosage ST-61. Orifice size 1.6 mm.

Maximum pressure: 3625 psi
Minimum flow rate: 1.6 GPM
Maximum flow rate: 15.2 GPM
Temperature: 140°F
Housing: forged brass
Nozzle: Stainless steel
Input coupling: ST-45-250 KW
Output connector: ST-45-250 KW
Suction hose lenght: 39"

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 05. Female 1/4. 3x0.8 Material Ss and brass . Made in Germany

Suttner rotating nozzle for sewer cleaning ST-49.1. Without centric hole, very good cleaning effect due to rotating nozzle jets.

ST-456 Orifice size 04 Brown. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-456
Nozzle orifice: 04 brown
Spray angle 20°
Pressure range: 2900 - 5076 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Spray angle: 20°

ST-49.3 mini rotating sewer cleaning nozzle. Nozzle size 05. Female 1/8. Material Hardened Ss. Made in Germany

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is :3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 04
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel

Suttner Pressure Switch ST-7.1 (RED-25 bar/362 psi) for Pressure Washer. Made in GERMANY

SPECIFICATION:

-Operating (start up) pressure: 25 bar/ 362 psi

-Rated pressure: 300bar/ 4350psi

-Rated temperature: 90C/ 194F

-Max Voltage: 250V

-Max Current strength: 10.1A

-Electrical Insulation rating: 65 IP

-Material: Brass

-Color: Black

-Inlet: 1/4” M

-Cable length: 950mm/ 37 Inches

PR-5 Red pressure switch is a fluid operating electro-mechanical device, which, upon reaching a pre-set (start-up)pressure 25 bar/360 psi, opens or closes an electrical control contact . Microswitch with very high resistance openings. Considerable resistance to high current values. Compact overall dimension. Three core cable.

Maximum pressure: 5076 psi
Rated working pressure: 3650 psi
Minimum pressure: 360 psi
Temperature: 167°F
Input : 1/4 F
Housing material: brass
Cord length: 37"
Max Curr./V. strength Contact: 5A-250 V
International protection rating: IP 55

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 05. Female 3/8. Material Ss and brass . Made in Germany

Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 4”-8” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.

A&R Ceramic piston kit 2758 pump series RK 228 RK18.20H, RK18.28H D20 Annovi Reverberi part number 1380930. A&R piston 20x40 mm.

Consists of:

-3 pieces

General Pump Repair Kit 137 - Unloader Repair Kit, For Triplex pumps TX, EZ Series 44, U, UI.

Consists of:

Anti-ext ring 90505200

O-ring 90382000

Sleeve 36323470

O-ring(2) 90357500

Anti-ext ring 90502500

Spacer 36323070

Spring 94748500

Valve 36323151

Valve guide 36322970

O-ring 90360000

Anti-ext ring 90514400

Spherical valve 36319066

Screw 99150900

Seat 36316466

O-ring 701614

Anti-ext ring 90506500

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 055
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/8 "M.
Housing: Hardened stainless steel

ST-40 Quick Screw Coupling M22fX1,5:3/8 M. Suitable for Karcher and more.

Maximum pressure: 5800 psi
Temperature: 300°F
Input: M22 F
Outlet: 3/8" M
Housing: brass/plastic
Height 46 mm

Suitable for all Suttner injectors ST-60, ST-60.1, ST-62. Hose tail 6mm chemical check valve.

Maximum Pressure 3625 PSI / 250 Bar

Maximum Temperature 140° F / 60° C

Material Brass

Hose Tail 6mm/0.24 in
