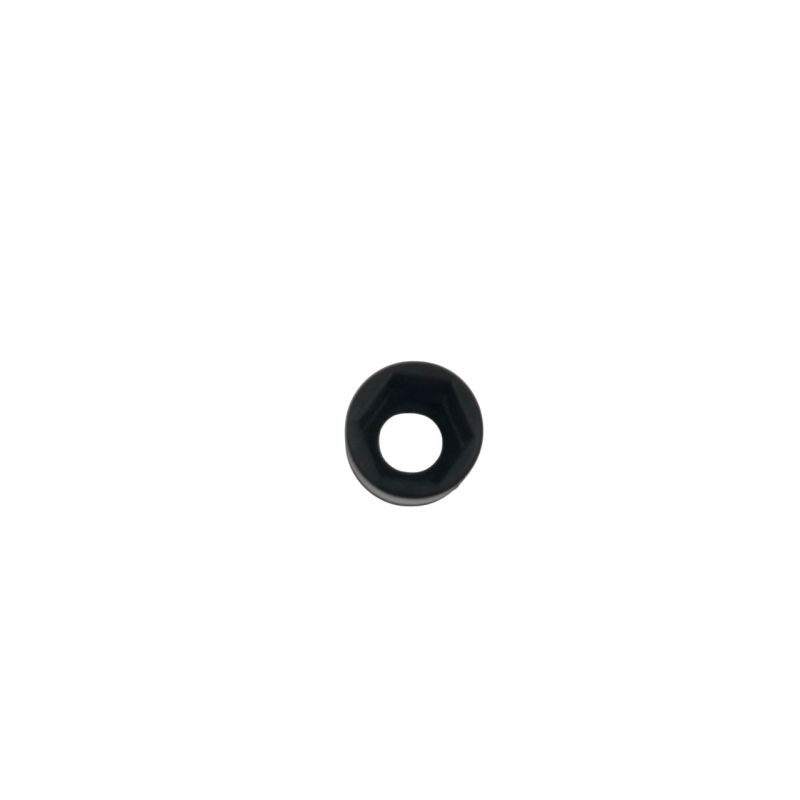

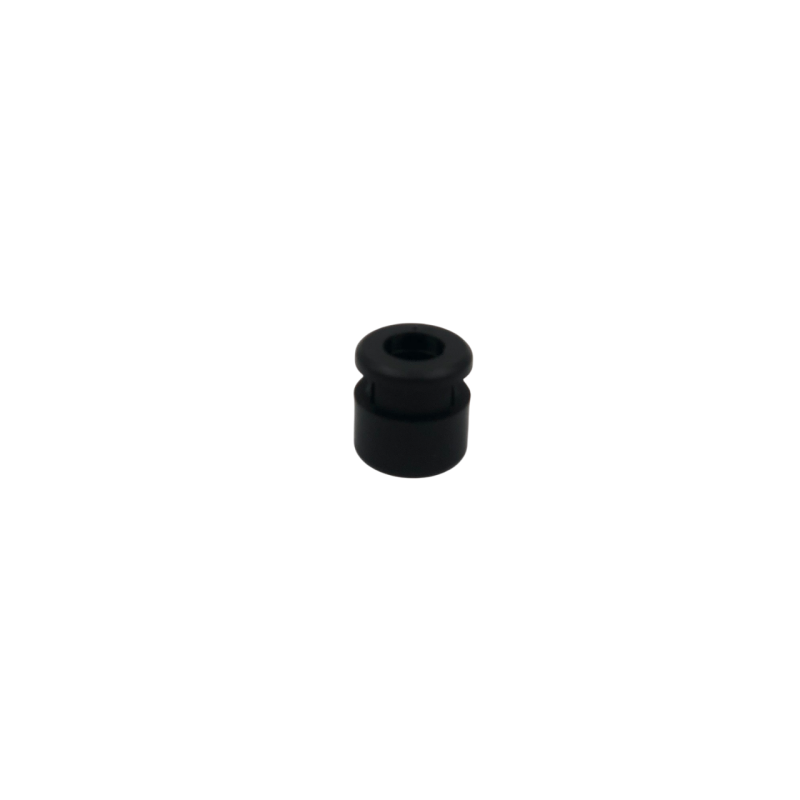

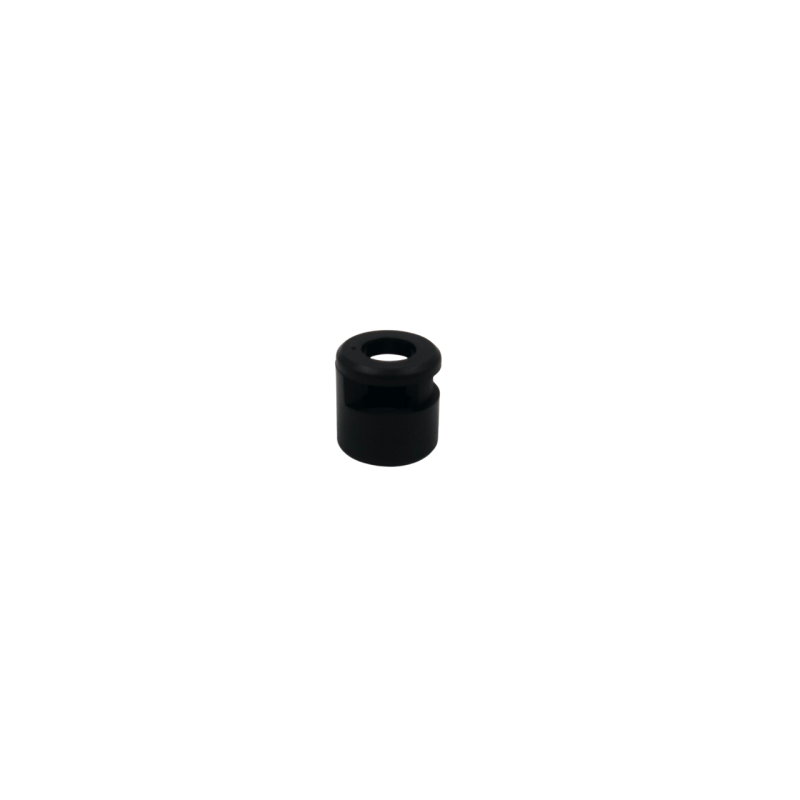

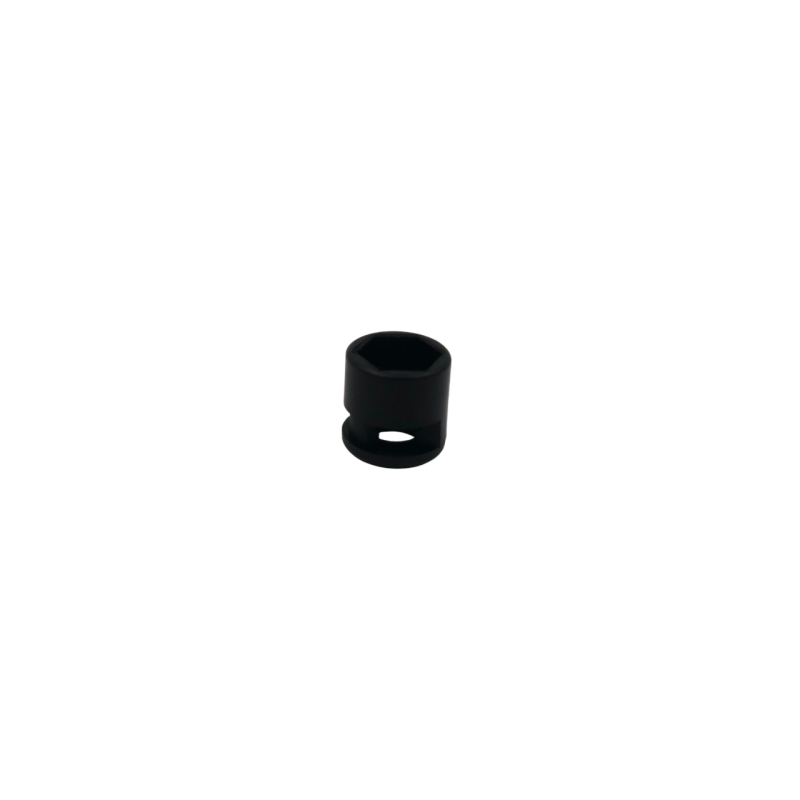

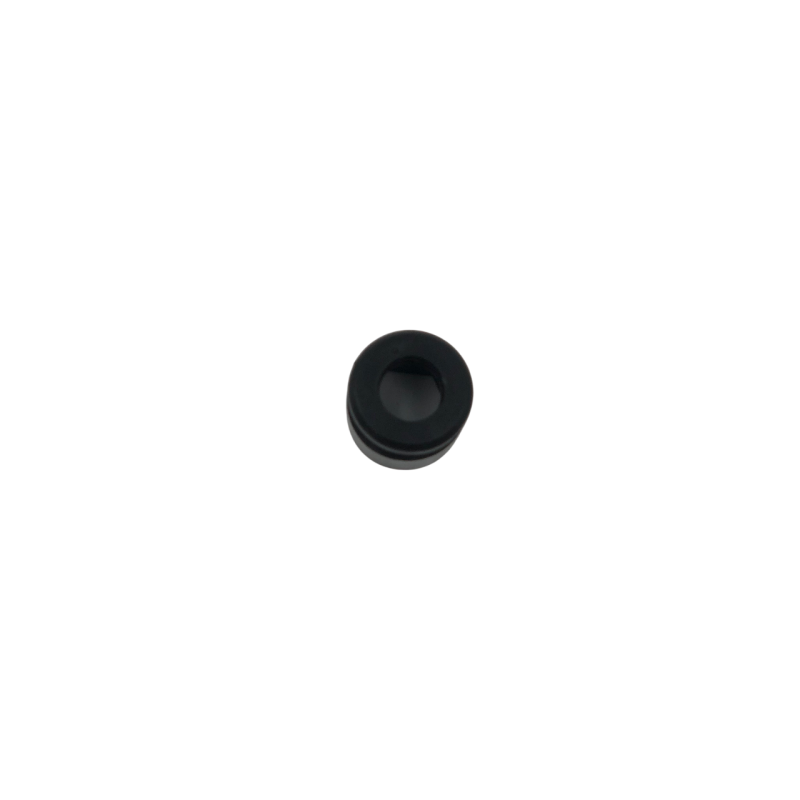

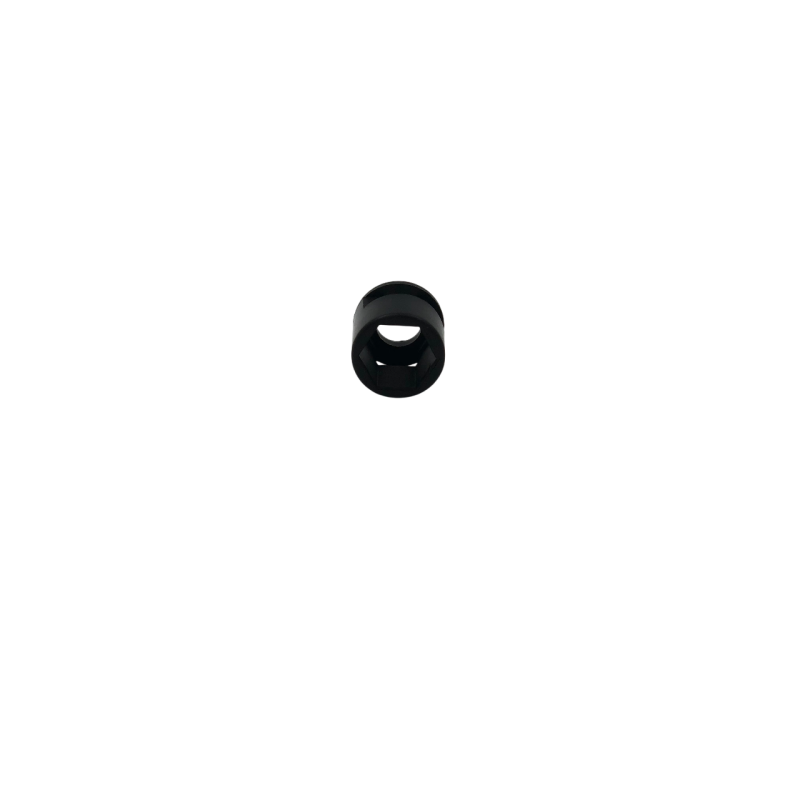

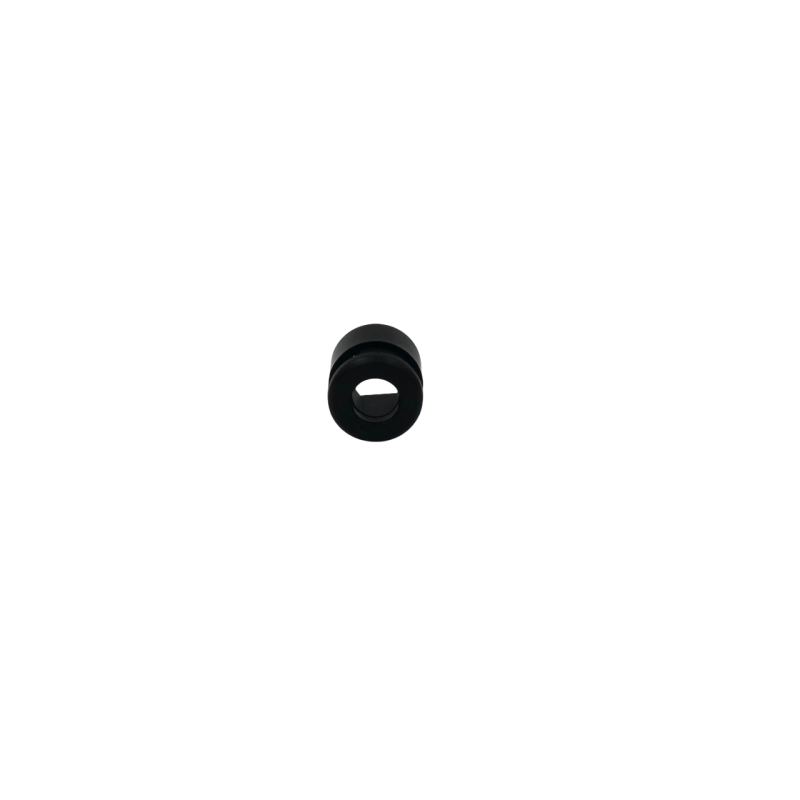

Lance Nozzle Protector for Nilfisk WAP

ST-49.3 mini rotating sewer cleaning nozzle. Nozzle size 07. Female 1/8. Material Hardened Ss. Made in Germany

ST-357.1 Orifice size 06 Red. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-357
Nozzle orifice: 06 Red
Spray angle 20°
Pressure range: 1450 - 3625 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F

Pressure regulation valve VB 9 with knob and panel fitting. Brass valve body, stainless steel ball and seat. Hex-shaped non-stick check valve.

Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass

ST-7 Flow switch with micro-switch. Switch-on point 1.1GPM. Mounts in any position horizontal or vertical.

Maximum pressure: 5000 psi
Minimum flow rate: 1.1 GPM
Maximum flow rate: 12 GPM
Temperature: 176°F
Input : 3/8 F
Outlet: 3/8 F
Housing: brass
Brass reed switch cord length: 47"
Contact: 10A-250 V
International protection rating: IP 65

Repair kit nozzle head for Suttner ST-72 Stainless Steel Foam Lance. Stainless steel construction ideal for food grade applications.

Specifications

Nozzle head without orifice

Input 1/4" FPT

Output 3/8" FPT

Maximum Temperature 300° F

Minimum Temperature 41° F

Suttner ST-6 Flow Switch, All position (Horizontal or Vertical) Spring assisted brass magnet. Made in Germany

FEATURES:

-Horizontal or vertical mount

-Easy brass reed switch replacement.

SPECIFICATION:

-Max. Pressure: 5,070 PSI/350 bar.

-Min. Pressure: 75 PSI

-Max. Flow Rate: 8 GPM/ 30 ltr.

-Min. Flow Rate: 1 GPM

-Max Voltage: 250 V

-Max Current: 1 Amps

-Max: Fluid Temperature: 180° F/ 80 ° C

-Cable Length: 47.0 in/ 1200 mm.

-Inlet & Outlet: 3/8 MNPT

-Housing: Forged Brass

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 06
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/8 "M.
Housing: Hardened stainless steel

ST-49.3 mini rotating sewer cleaning nozzle. Nozzle size 05. Female 1/8. Material Hardened Ss. Made in Germany

ST-10 is 2 component nozzle protector. Made out of hard plastic and soft edge protecting sensitive surfaces against damage . Stainless steel body. The nozzle protector suitable for cold and hot water applications in the car wash, agriculture, food industry. ST-10 is unimpeachable, protects your nozzles and preserves the surfaces to be cleaned at the same time. Suitable for nozzles 1/8" M NPT.

Maximum pressure: 7250 psi
Rated temperature: 300°F
Input: 1/4 F NPT
Outlet: 1/8 F NPT
Housing: Stainless Steel
Protection material: Hard plastic/Soft edge

1701864 A&R valve repair kit 1864 for pump HXM, XT, XM, Ser. Blitz, X-PRO,KB, Hot, 6,7,9, 132, 178 (1269050)

Valve set for Annovi Reverberi HXM, XT,XM Series blitz, KB, x-pro, 6,7,9, 132, 178. A&R part number (1269050). Valve kit number 1864.

Consists of:

-6 Valves

-6 O-rings

The ST-2300 is a professional high pressure cleaning gun (hot/cold water). The grip housing is from an impact-resistant plastic. The valve body and connectors are both corrosion-resistant. The trigger is equipped with a safety lock and rotating swivel joint that the high pressure hose cannot be turned so as to unscrew the connection between high pressure hose and spray gun a swivel joint may be used. By means of this swivel joint the gun may be turned slightly when in an unpressured state in relation to the hose. With increasing pressure the swivel joint becomes increasingly difficult to turn.

Maximum pressure: 4500 psi
Recommended pressure: 4000 psi
Maximum flow rate: 12 GPM
Temperature: 300°F
Input connector: swivel 3/8 F
Outlet: connector 1/4 F
Housing: forged brass

Our easyfoamer ST-73.1 realizes an ideal mixing of air and cleaning agent, thus succeeding an ideal foam result. Nozzle size 1.25.

completely stainless steel and

non-corrosive injector unit

the highest grade of chemical resistance

5 defined dosing positions

0.265 gal bottle

vertical or horizontal spray pattern

patent pending

Pressure max. 4350 psi

Temperature  176 F

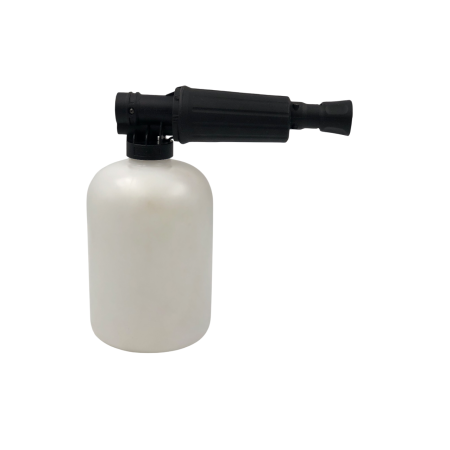

Suttner ST 73.1 High flow foam injector lance with large 64 oz. Bottle, Stainless steel Integrated Chemical Injector size 1.8, 1/4" F Inlet. Convenient and portable for more effective foam cleaning for Industry, Agriculture, Atuomotive/Fleet and institutional applications!

The ST-73 foam lance is fitted with an interchangeable injector nozzle and a foaming pad. By turning an adjustable grip handle the concentration of foaming agent in the water can be adjusted.

Pressure 1000 - 3625 PSI

Flow Rate 3.4 - up to 8 GPM

Max Temp 175° F

Inlet 1/4" Female

Bottle 64 oz.

Weight 1.20 lb

ST-49 non-rotating sewer cleaning Grease ball nozzle. Female 1/4 8x06R. Ss hardened. Made in Germany

The Grease ball features 8 rear jets (0.6 mm) for extreme thrust and highest wall coverage of the pipe. Designed for the ability to clean grease off the sidewall of pipes but has proven to be great on root chokes too. Completely spherical shape. Nozzle drilling as stepped bore for best protection against mechanical impact. Good for 2”-6” inch lines.

ST-60.1 Downstream Suttner foam injector with chemical metering valve, suction hose and ST-31 chemical strainer, quick couplings nickel/zinc plated brass ST-45-250 KEW, Nilfisk-Alto. Mixing of chemicals approx. 0-11.5%.Metering valve hose tail 1/4. Suction hose 39" long.Injector with dosage ST-61. Orifice size 1.6 mm.

Maximum pressure: 3625 psi
Minimum flow rate: 1.6 GPM
Maximum flow rate: 15.2 GPM
Temperature: 140°F
Housing: forged brass
Nozzle: Stainless steel
Input coupling: ST-45-250 KW
Output connector: ST-45-250 KW
Suction hose lenght: 39"

P.A. Unloader pressure Regulation valve VB 85/280 Blue Spring, knob is not included.

SPECIFICATION:

-Maximum pressure: 4500 psi

-Working rated pressure: 4050 psi

-Inlet 1/2" F

-Outlet 1/2" F

-Bypass 1/2" F

-Maximum flow rate: 21 GPM

-Rated temperature: 195°F

-Housing: forged brass

-Material: brass

-Manufacturer: PA
