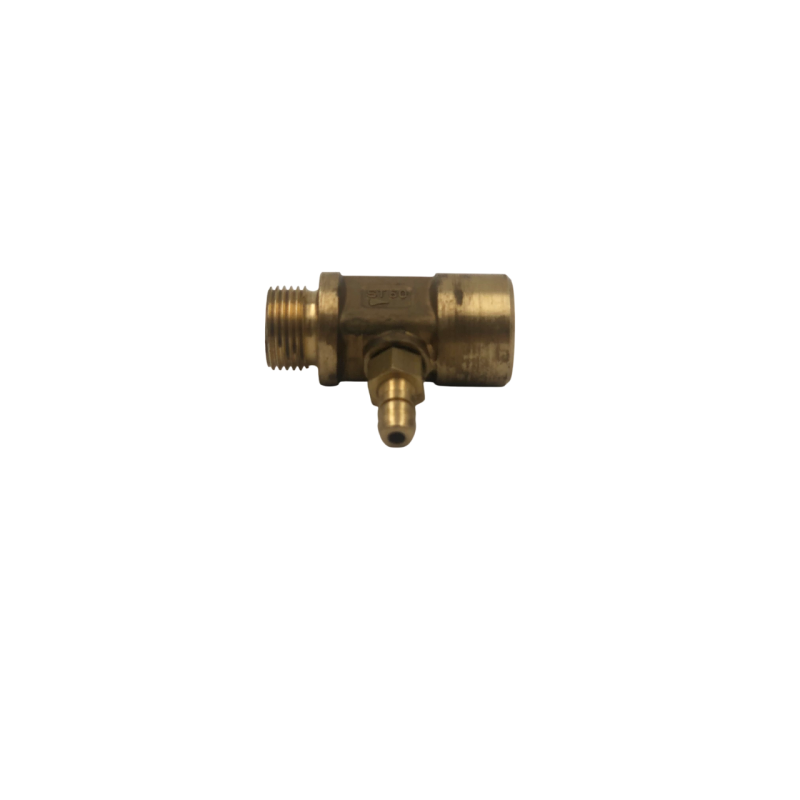

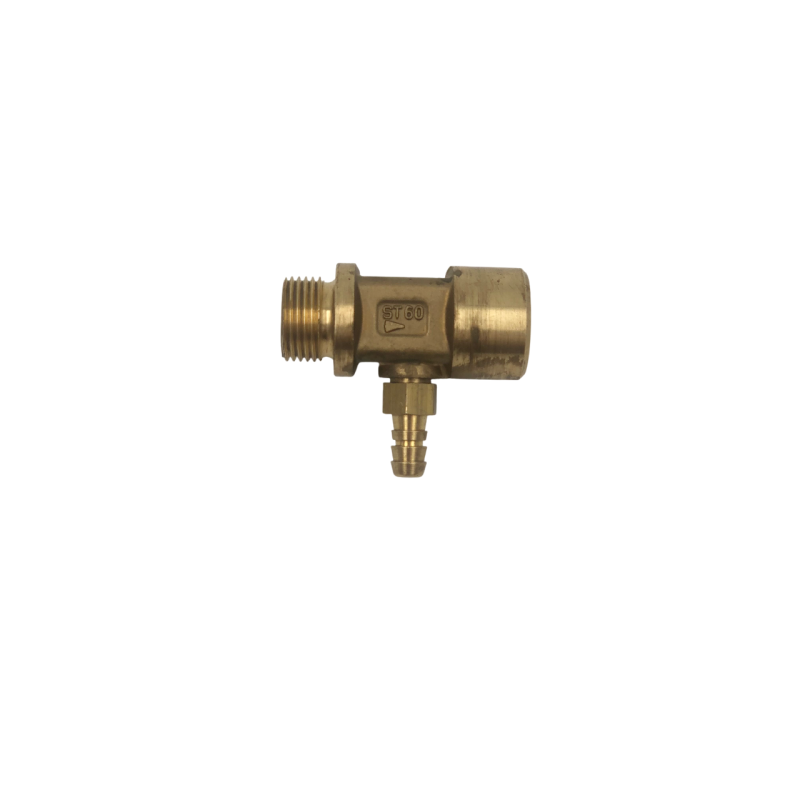

Suttner ST-60.1 Foam Injector without metering valve

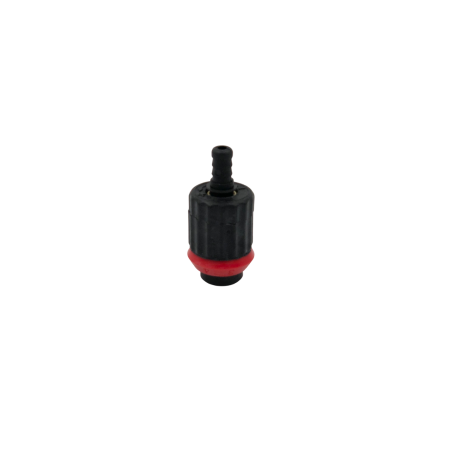

Metering valve, regular kit for ST-60.1 foam injector. Hose tail 6mm. Made in Germany. Suitable for all Suttner injectors ST-60, ST-60.1, ST-62.

Maximum Pressure 3625 PSI / 250 Bar

Maximum Temperature 140° F

Material Plastic

Hose tail 6mm/0.24 in

ST-456 Orifice size 07 Pink. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-456
Nozzle orifice: 07 pink
Spray angle 20°
Pressure range: 2900 - 5076 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Spray angle: 20°

Suttner repair kit for ST-2300/2600 Pressure washer trigger gun. With instructions inside. Made in Germany.

-Instructions inside

-Fits ST2300/2600/2305/2605

-Kit for repairing Suttner Pressure washer guns

-Manufacturer: Suttner

ST-357.1 Orifice size 05 Black. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-357
Nozzle orifice: 05 Black
Spray angle 20°
Pressure range: 1450 - 3625 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F

ST-5 Flow switch (grey universal). Mounts in horizontal or vertical position (any position). Magnet with hole.

Maximum pressure: 5076 psi
Minimum pressure: 75 psi
Minimum flow rate: 1 GPM
Maximum flow rate: 7.8 GPM
Temperature: 180°F
Input : 3/8 F
Outlet: 3/8 F
Housing: brass
Brass reed switch cord length: 47"
Contact: 1A-250 V

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 06
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/8 "M.
Housing: Hardened stainless steel

Quick Screw Coupling (nipple) M22X1,5:3/3"M

Maximum pressure: 5800 psi

Temperature: 300°F

Input: M22 M

Outlet: 3/8" M

Housing: brass

Height 29 mm

Pressure regulation valve VB-9 with knob, PR-5 switch and panel fitting. Brass valve body, stainless steel ball and seat. Hex-shaped non-stick check valve. Instant pressure response.

Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass
Max. Curr. Strenght 6 (2) A
Max. Voltage 250 V
Cord length: 39.4 in
International protection rating: IP 55

Suttner Pressure Switch ST-7.1 (RED-25 bar/362 psi) for Pressure Washer. Made in GERMANY

SPECIFICATION:

-Operating (start up) pressure: 25 bar/ 362 psi

-Rated pressure: 300bar/ 4350psi

-Rated temperature: 90C/ 194F

-Max Voltage: 250V

-Max Current strength: 10.1A

-Electrical Insulation rating: 65 IP

-Material: Brass

-Color: Black

-Inlet: 1/4” M

-Cable length: 950mm/ 37 Inches

Suttner ST-6 Flow Switch, All position (Horizontal or Vertical) Spring assisted brass magnet. Made in Germany

FEATURES:

-Horizontal or vertical mount

-Easy brass reed switch replacement.

SPECIFICATION:

-Max. Pressure: 5,070 PSI/350 bar.

-Min. Pressure: 75 PSI

-Max. Flow Rate: 8 GPM/ 30 ltr.

-Min. Flow Rate: 1 GPM

-Max Voltage: 250 V

-Max Current: 1 Amps

-Max: Fluid Temperature: 180° F/ 80 ° C

-Cable Length: 47.0 in/ 1200 mm.

-Inlet & Outlet: 3/8 MNPT

-Housing: Forged Brass

ST-10 is 2 component nozzle protector. Made out of hard plastic and soft edge protecting sensitive surfaces against damage . Stainless steel body. The nozzle protector suitable for cold and hot water applications in the car wash, agriculture, food industry. ST-10 is unimpeachable, protects your nozzles and preserves the surfaces to be cleaned at the same time. Suitable for nozzles 1/8" M NPT.

Maximum pressure: 7250 psi
Rated temperature: 300°F
Input: 1/4 F NPT
Outlet: 1/8 F NPT
Housing: Stainless Steel
Protection material: Hard plastic/Soft edge

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is :3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 045
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/8 "M.
Housing: Hardened stainless steel

General Pump Repair Kit 137 - Unloader Repair Kit, For Triplex pumps TX, EZ Series 44, U, UI.

Consists of:

Anti-ext ring 90505200

O-ring 90382000

Sleeve 36323470

O-ring(2) 90357500

Anti-ext ring 90502500

Spacer 36323070

Spring 94748500

Valve 36323151

Valve guide 36322970

O-ring 90360000

Anti-ext ring 90514400

Spherical valve 36319066

Screw 99150900

Seat 36316466

O-ring 701614

Anti-ext ring 90506500

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 055. Female 1/8. Material Ss and brass . Made in Germany

Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 1”-3” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 055
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel
