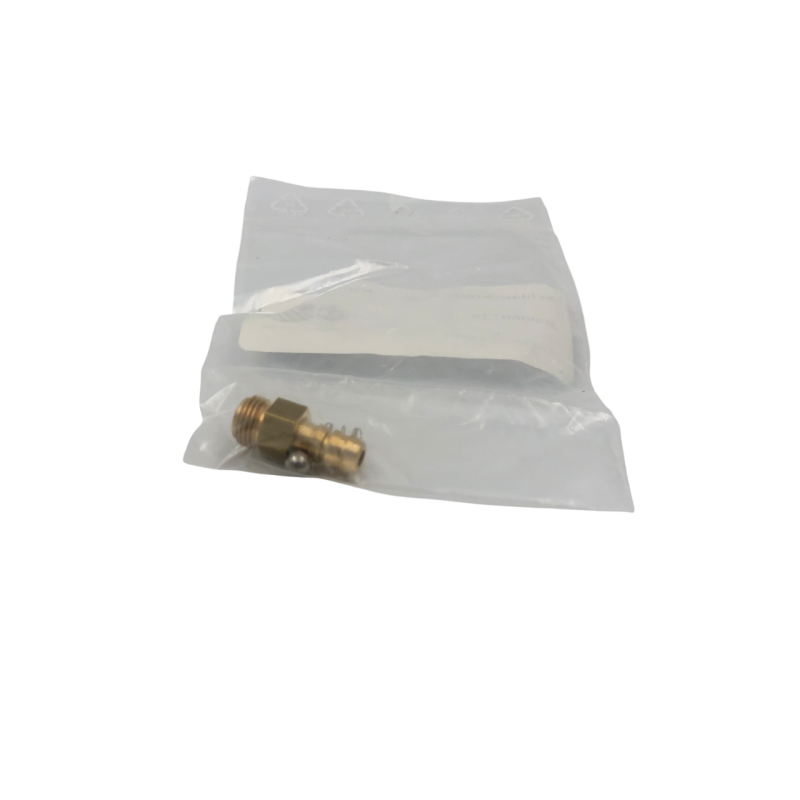

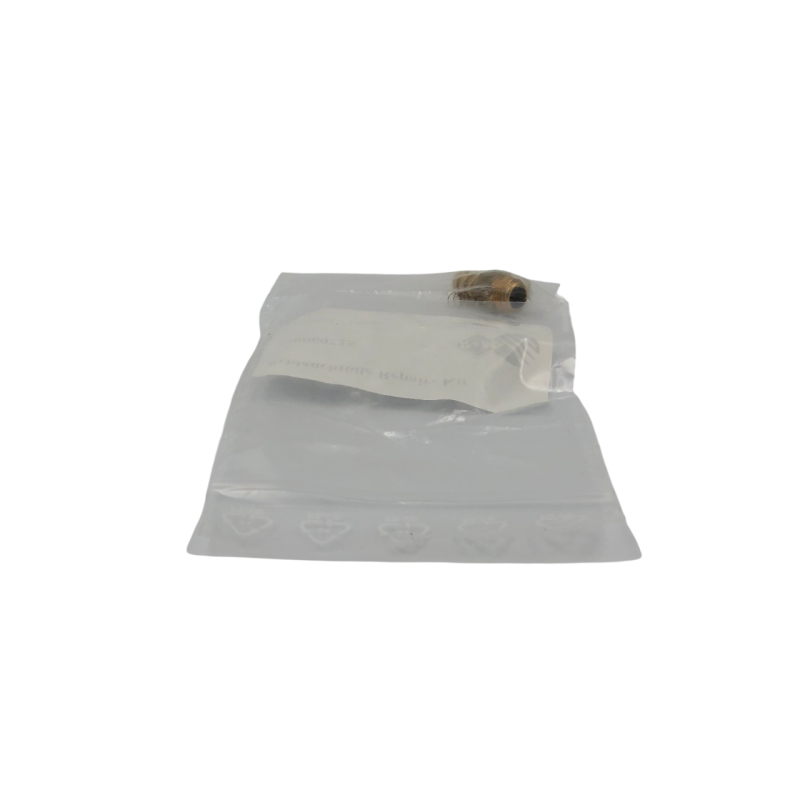

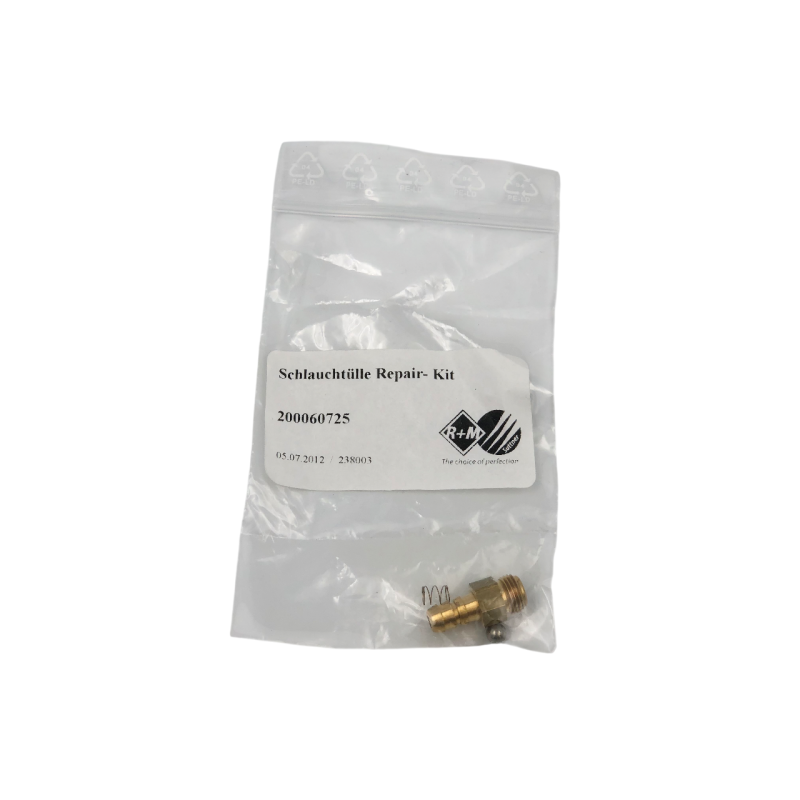

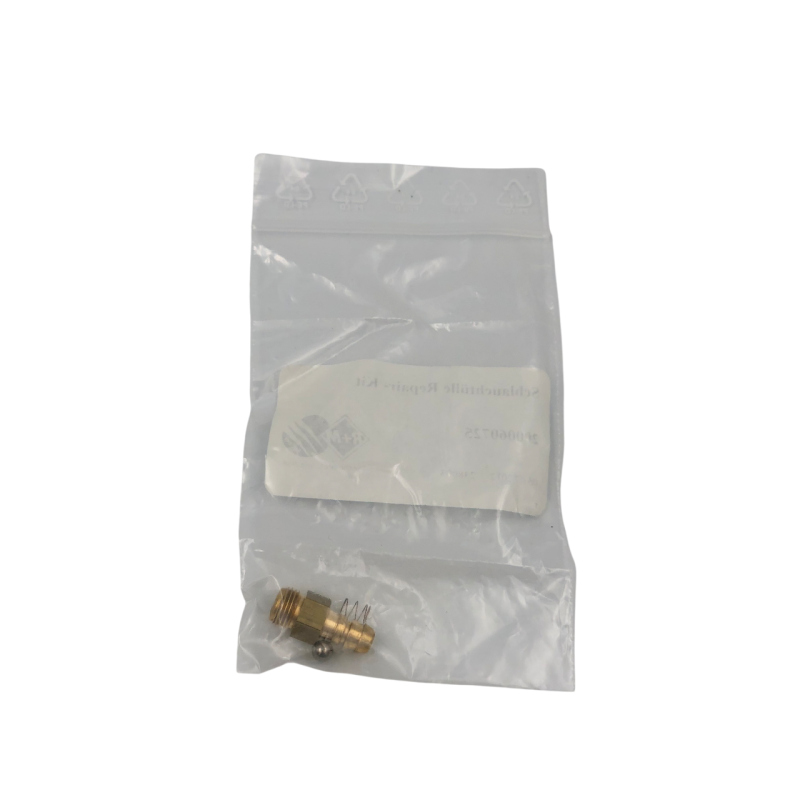

Suttner Chemical Check valve repair kit hose barb for ST-60.1 foam injector

ST-456 Orifice size 06 Red. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-456
Nozzle orifice: 06 Red
Spray angle 20°
Pressure range: 2900 - 5076 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Spray angle: 20°

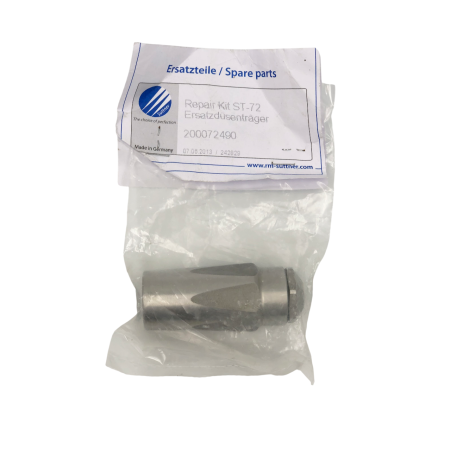

Repair kit nozzle head for Suttner ST-72 Stainless Steel Foam Lance. Stainless steel construction ideal for food grade applications.

Specifications

Nozzle head without orifice

Input 1/4" FPT

Output 3/8" FPT

Maximum Temperature 300° F

Minimum Temperature 41° F

ST-40 Quick screw couplings M22fX1,5:3/8F. Suitable for Karcher and more.

Maximum pressure: 5800 psi
Temperature: 300°F
Input: M22 F
Outlet: 3/8" F
Housing: brass/plastic
Height 45 mm

Suttner ST-72 Stainless Steel 24" FOAM LANCE, 2.9-3.96 GPM, 2.3 ORIFICE YELLOW COLLAR.

In conjunction with a spray gun and upstream or downstream injector, allows cleaning agents or disinfectants to be applied evenly over a large surface. Stainless steel construction ideal for food grade applications.

FEATURES:

-Thick foam is produced when air flows through vented injector housing and mixes with water and chemical stream.

-Wet foam allows more efficient use of chemical

-More durable than conventional foamers

-Color orifice indicator on handle end

-A foam injector is required

SPECIFICATION:

-Orifice: 2.3 Yellow Dot

-Flow Rates: 2.90 to 3.96 GPM

-Input: 1/4" FPT

-Length: 24"

-Temperature: 300 F maximum, 41 F minimum

-Pressure: 900 PSI maximum

ST-357.1 Orifice size 04 Brown. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-357
Nozzle orifice: 04 Brown
Spray angle 20°
Pressure range: 1450 - 3625 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 055. Female 1/8. Material Ss and brass . Made in Germany

Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 1”-3” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.

ST-10 is 2 component nozzle protector. Made out of hard plastic and soft edge protecting sensitive surfaces against damage . Stainless steel body. The nozzle protector suitable for cold and hot water applications in the car wash, agriculture, food industry. ST-10 is unimpeachable, protects your nozzles and preserves the surfaces to be cleaned at the same time. Suitable for nozzles 1/8" M NPT.

Maximum pressure: 7250 psi
Rated temperature: 300°F
Input: 1/4 F NPT
Outlet: 1/8 F NPT
Housing: Stainless Steel
Protection material: Hard plastic/Soft edge

Metering valve, regular kit for ST-60.1 foam injector. Hose tail 6mm. Made in Germany. Suitable for all Suttner injectors ST-60, ST-60.1, ST-62.

Maximum Pressure 3625 PSI / 250 Bar

Maximum Temperature 140° F

Material Plastic

Hose tail 6mm/0.24 in

ST-1500 is a most popular professional spray gun in the market.The grip housing is from impact-resistant plastic. The valve body and connectors are corrosion-resistant. The trigger is equipped with a safety lock.

Maximum pressure: 4000 psi
Maximum flow rate: 12 GPM
Temperature: 300°F
Input connector: 3/8 F
Outlet: 1/4 F
Housing: forged brass

Nozzle protector. It's made out of soft Rubber which protects sensitive surfaces against damage. It also has a zinc-plated body. The nozzle protector is suitable for cold and hot water applications in the car wash, agriculture. Suitable for nozzles 1/4" M NPT.

Maximum pressure: 5800 psi
Rated temperature: 300°F
Input: 1/4 F NPT
Outlet: 1/4 F NPT
Housing: Zinc-plated steel
Protection material: Rubber

ST-357.1 Orifice size 05 Black. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-357
Nozzle orifice: 05 Black
Spray angle 20°
Pressure range: 1450 - 3625 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 045. Female 1/8. Material Ss and brass . Made in Germany

Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 1”-3” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 05. Female 1/8. Material Ss and brass . Made in Germany

Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 1”-3” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.

Our easyfoamer ST-73.1 realizes an ideal mixing of air and cleaning agent, thus succeeding an ideal foam result. Nozzle size 1.25.

completely stainless steel and

non-corrosive injector unit

the highest grade of chemical resistance

5 defined dosing positions

0.265 gal bottle

vertical or horizontal spray pattern

patent pending

Pressure max. 4350 psi

Temperature  176 F

PR-5 Red pressure switch is a fluid operating electro-mechanical device, which, upon reaching a pre-set (start-up)pressure 25 bar/360 psi, opens or closes an electrical control contact . Microswitch with very high resistance openings. Considerable resistance to high current values. Compact overall dimension. Three core cable.

Maximum pressure: 5076 psi
Rated working pressure: 3650 psi
Minimum pressure: 360 psi
Temperature: 167°F
Input : 1/4 F
Housing material: brass
Cord length: 37"
Max Curr./V. strength Contact: 5A-250 V
International protection rating: IP 55

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 06
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel
